Catalog · 125 product families
Browse production-ready examples across five manufacturing categories. Every item is quoted to your drawing, material, finish, tolerance, and volume requirements, with lot traceability and inspection documentation available.
No products match that search. Try a material, process, finish, application, or SKU.
01 · 25 product families
Progressive- and single-stage stampings for brackets, clips, shields, contacts, and formed hardware. Production tooling is maintained for repeatable runs, with in-die sensing and documented first-article approval available.
PC-ST-001

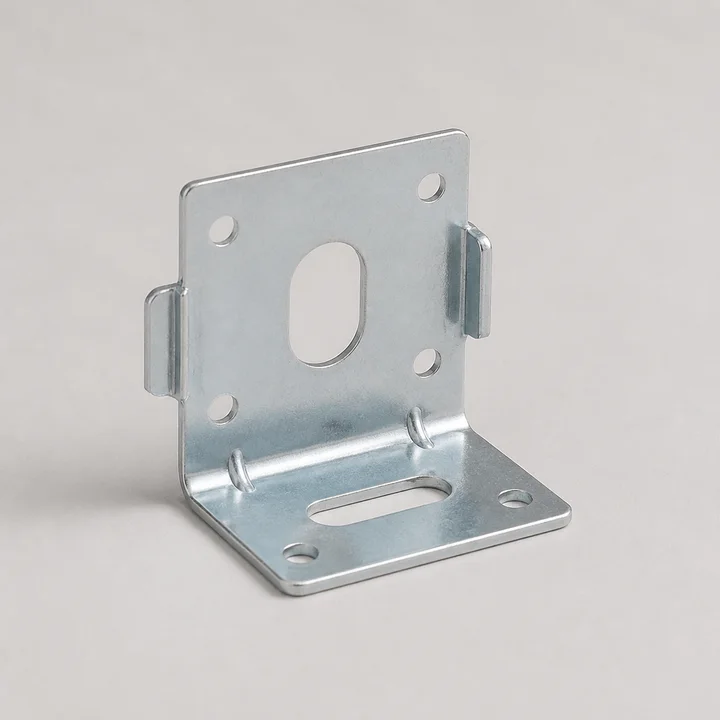

Right-angle mounting bracket produced in 2.0mm 1008 CRS for industrial control cabinets. Supplied to print with lot traceability and inspection documentation.
PC-ST-002

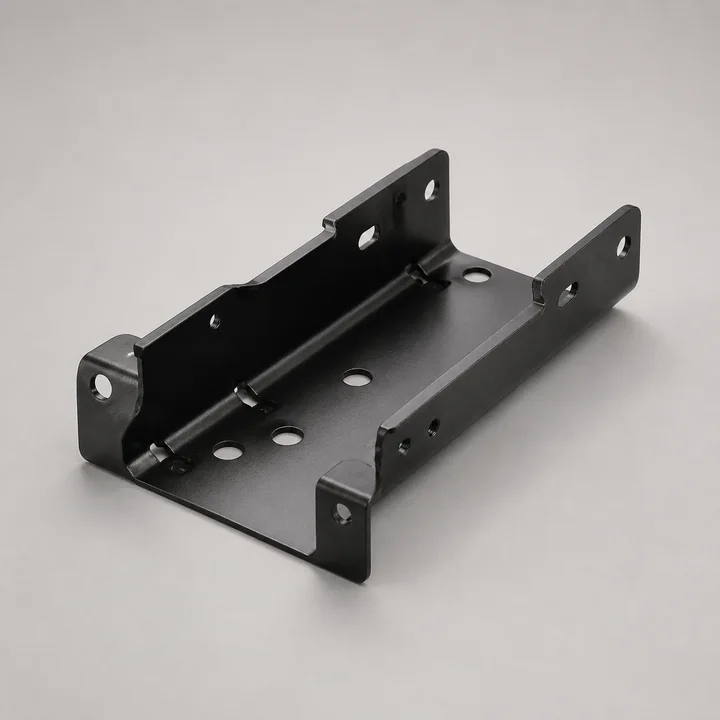

U-channel support bracket produced in 3.0mm HSLA steel for vehicle seat structures. Supplied to print with lot traceability and inspection documentation.
PC-ST-003

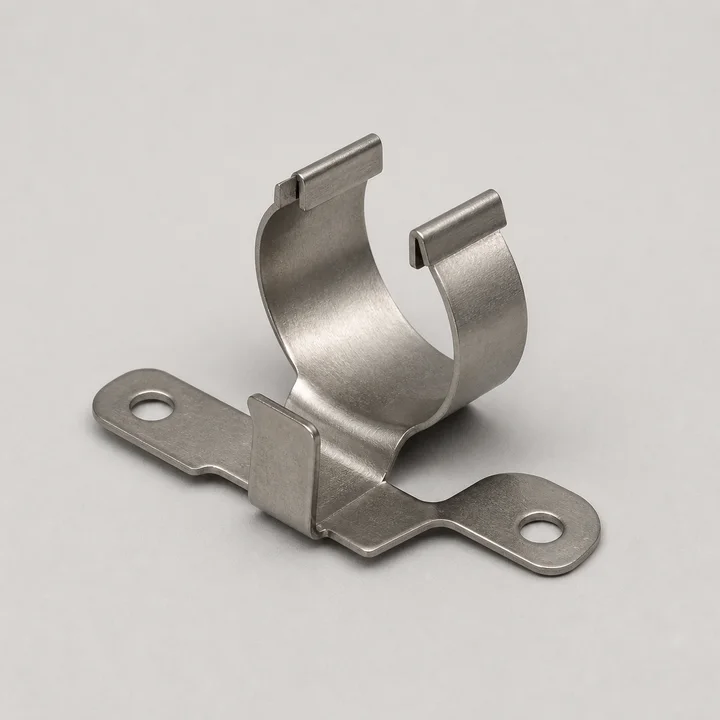

Cable retention clip produced in 0.8mm 301 stainless for wire-harness routing. Supplied to print with lot traceability and inspection documentation.
PC-ST-004

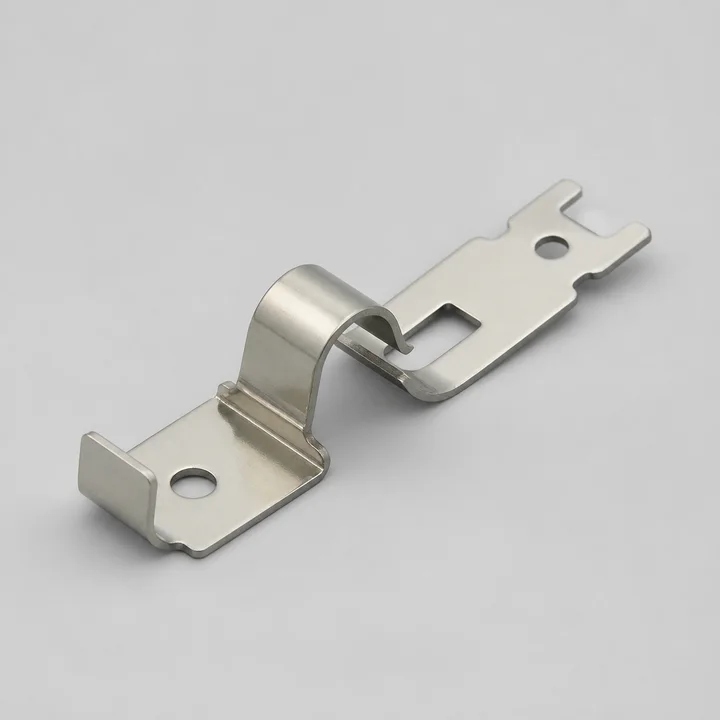

Spring finger contact produced in 0.4mm C172 beryllium copper for electrical grounding assemblies. Supplied to print with lot traceability and inspection documentation.
PC-ST-005

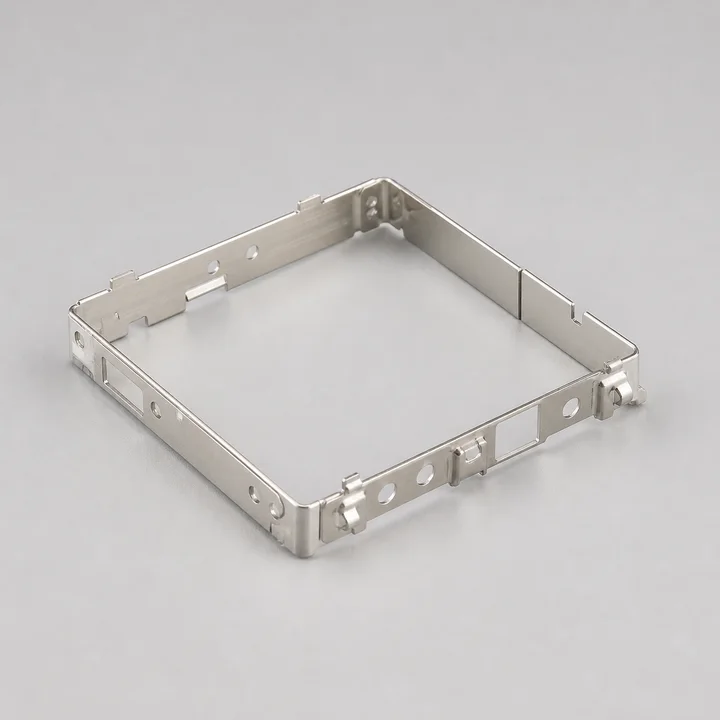

EMI shield frame produced in 0.5mm nickel silver for board-level RF shielding. Supplied to print with lot traceability and inspection documentation.
PC-ST-006

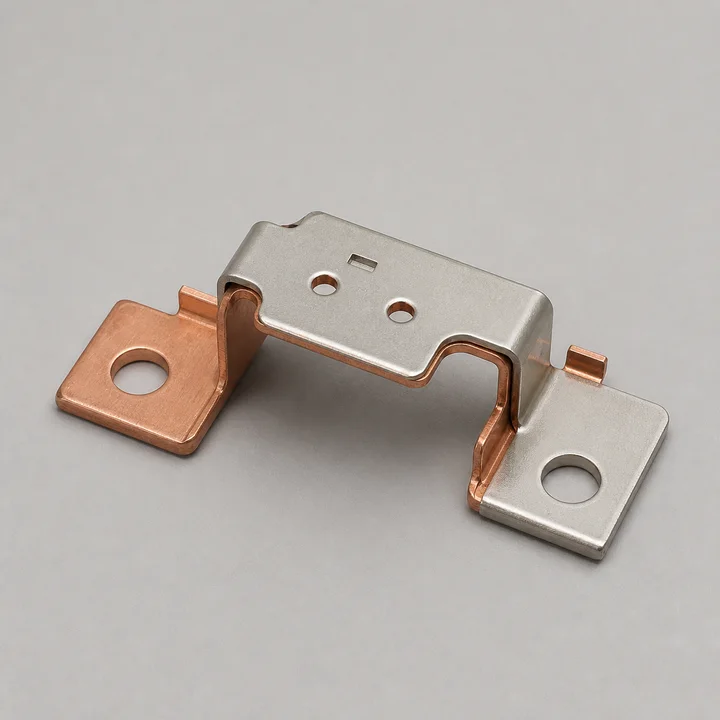

Battery terminal bus clip produced in 1.2mm C110 copper for battery module interconnects. Supplied to print with lot traceability and inspection documentation.

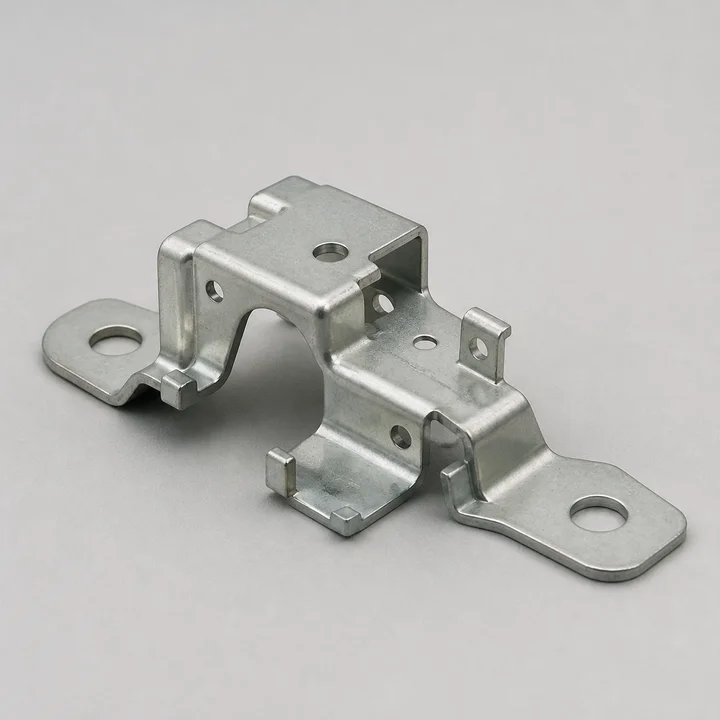

PC-ST-007
Seat latch reinforcement produced in 4.0mm HSLA steel for automotive latch systems. Supplied to print with lot traceability and inspection documentation.
PC-ST-008

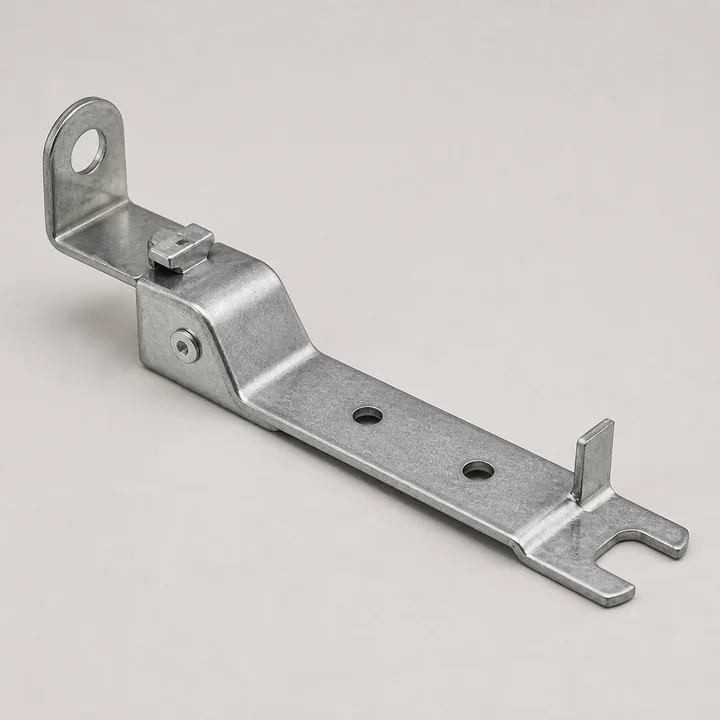

HVAC damper link produced in 1.5mm galvanized steel for commercial air-handling equipment. Supplied to print with lot traceability and inspection documentation.
PC-ST-009

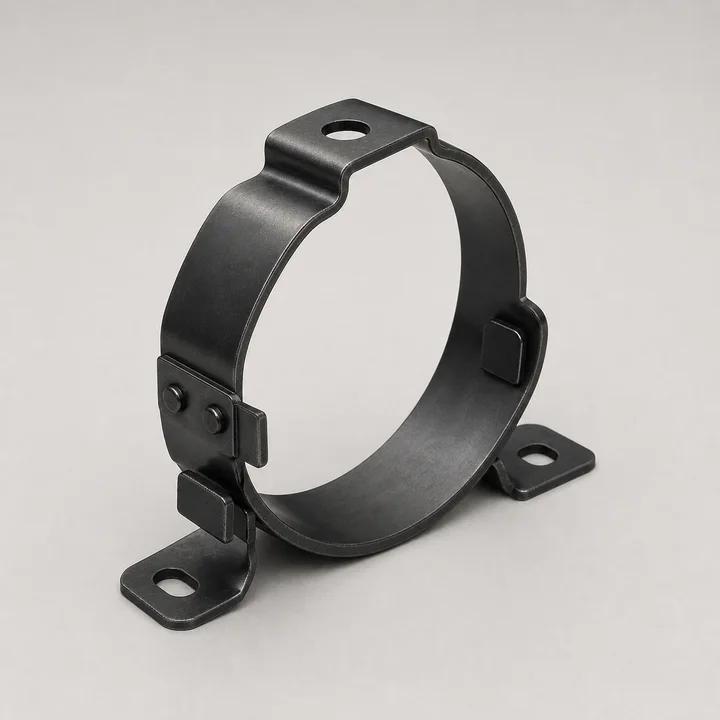

Motor endbell clamp produced in 2.5mm 1010 steel for fractional-horsepower motors. Supplied to print with lot traceability and inspection documentation.
PC-ST-010

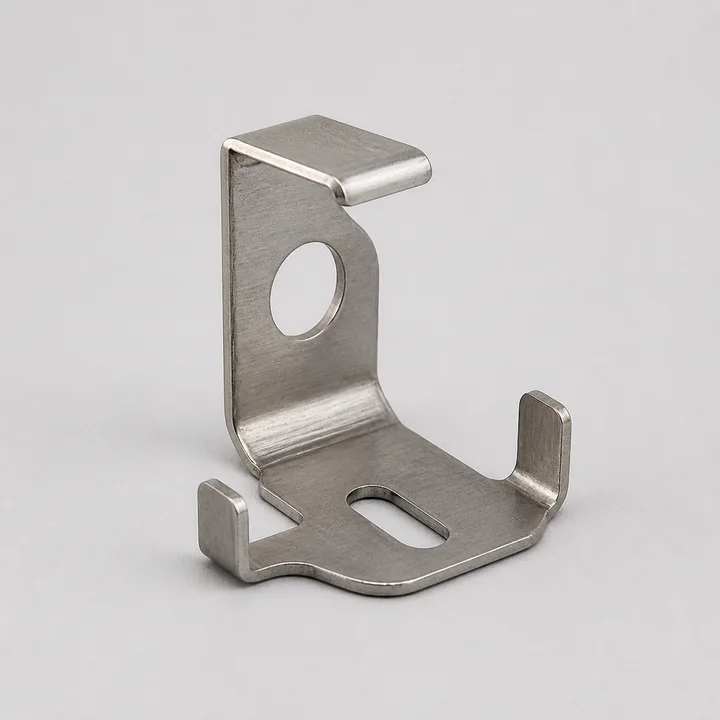

Sensor mounting tab produced in 1.0mm 304 stainless for industrial proximity sensors. Supplied to print with lot traceability and inspection documentation.
PC-ST-011

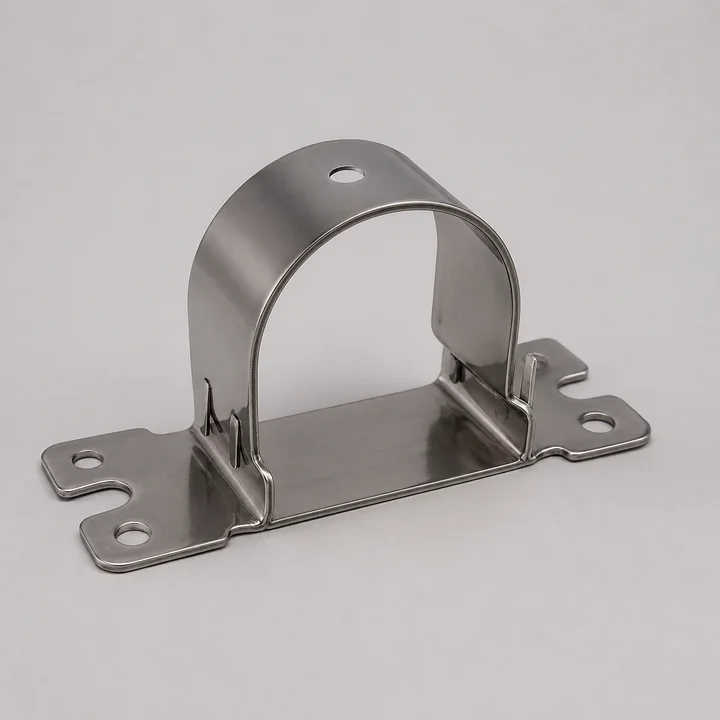

Pipe saddle clamp produced in 2.0mm 316 stainless for food-processing pipework. Supplied to print with lot traceability and inspection documentation.
PC-ST-012

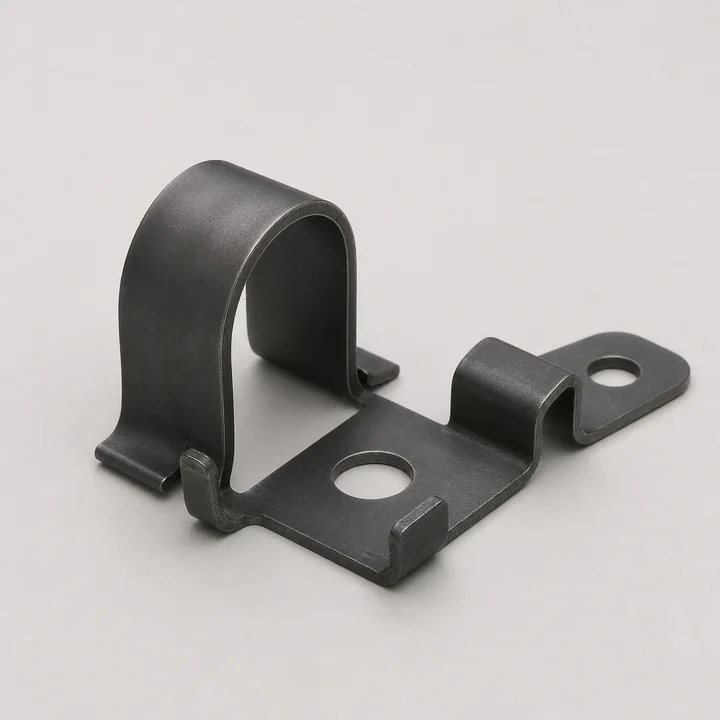

Hose routing clip produced in 1.2mm 1050 spring steel for mobile hydraulic equipment. Supplied to print with lot traceability and inspection documentation.
PC-ST-013

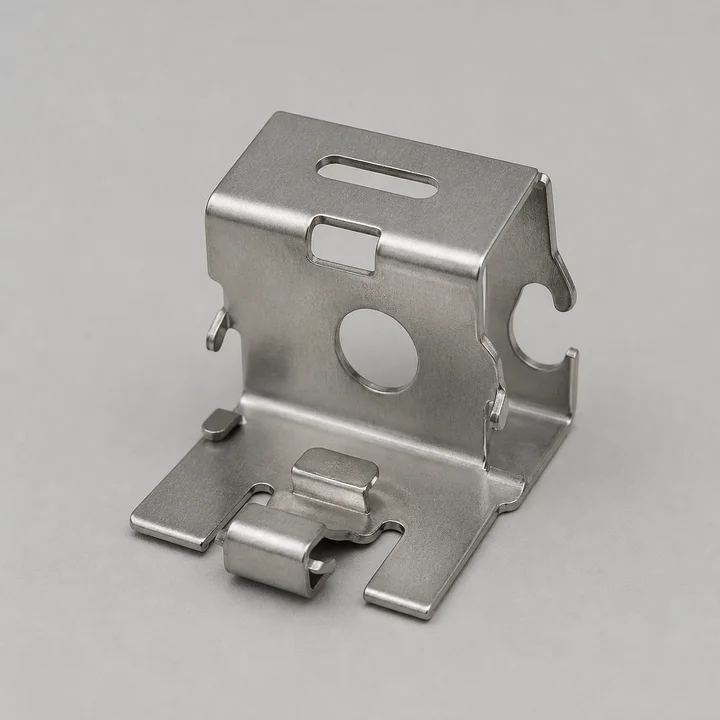

DIN rail retaining clip produced in 0.8mm 301 stainless for panel-mounted electronics. Supplied to print with lot traceability and inspection documentation.

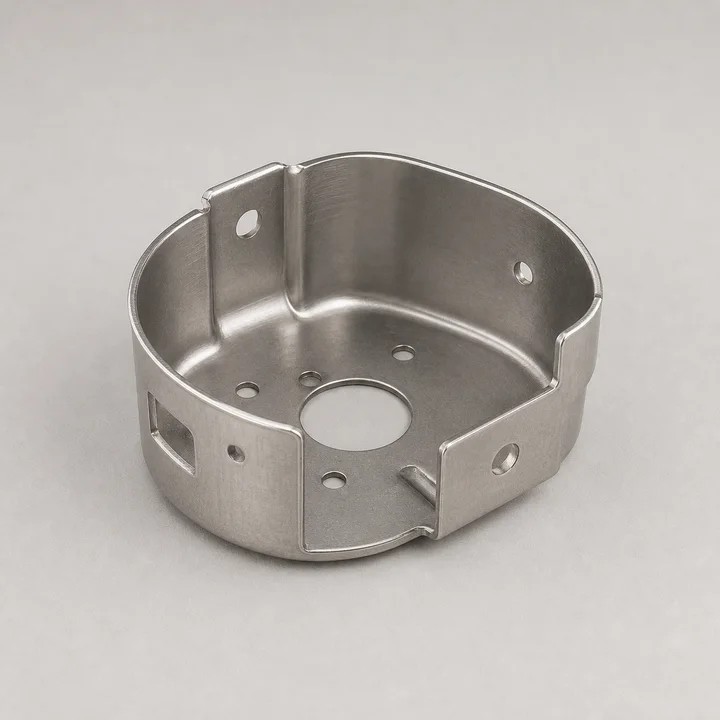

PC-ST-014
Deep-drawn sensor cup produced in 0.9mm 304 stainless for sealed sensing assemblies. Supplied to print with lot traceability and inspection documentation.
PC-ST-015

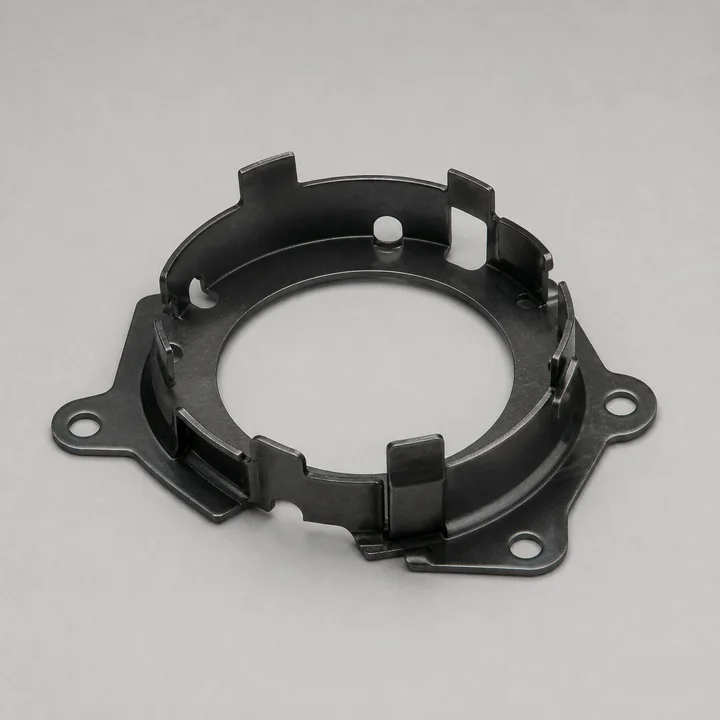

Stamped bearing retainer produced in 1.5mm 1074 spring steel for compact gearbox assemblies. Supplied to print with lot traceability and inspection documentation.
PC-ST-016

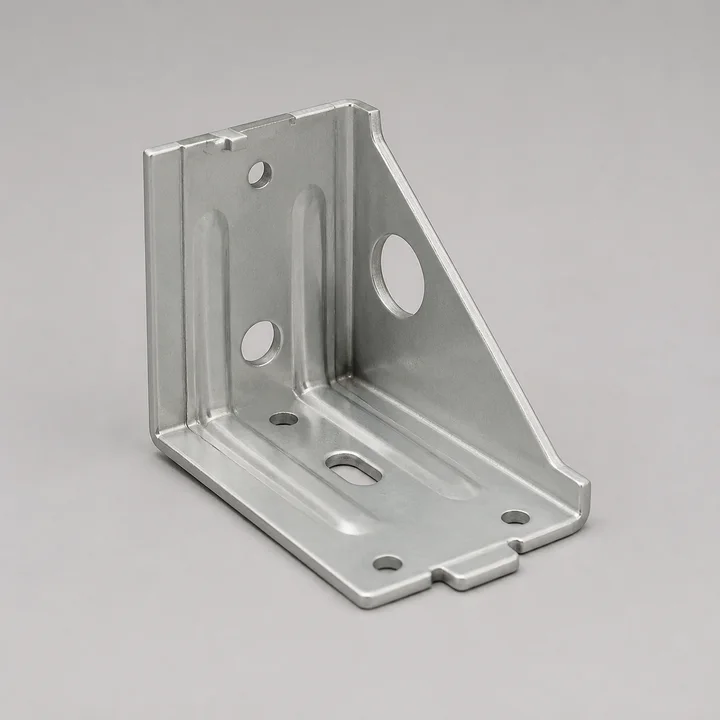

Chassis corner gusset produced in 2.5mm 5052-H32 aluminum for lightweight equipment frames. Supplied to print with lot traceability and inspection documentation.
PC-ST-017

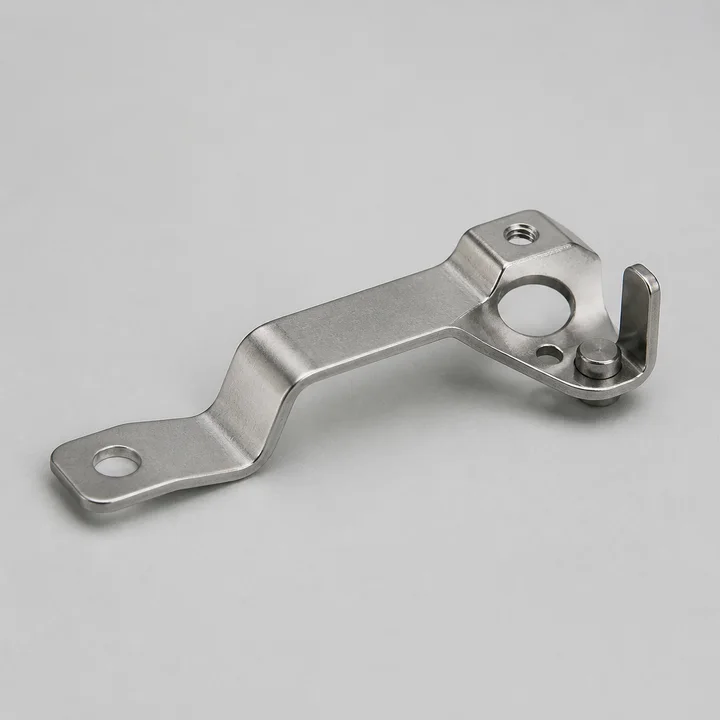

Valve actuator lever produced in 3.0mm 304 stainless for process-control valves. Supplied to print with lot traceability and inspection documentation.
PC-ST-018
Grounding lug plate produced in 1.6mm C110 copper for power distribution equipment. Supplied to print with lot traceability and inspection documentation.

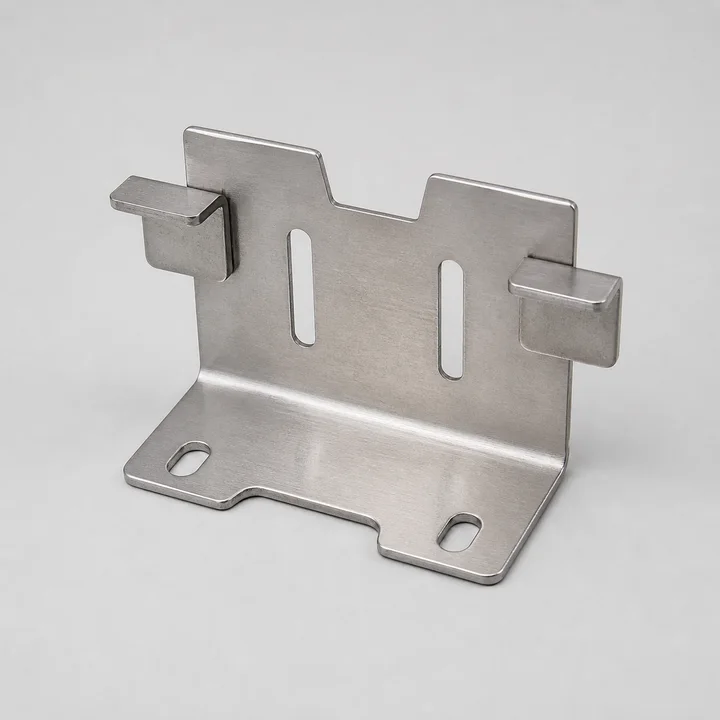

PC-ST-019
Conveyor guide bracket produced in 3.0mm 304 stainless for packaging conveyors. Supplied to print with lot traceability and inspection documentation.
PC-ST-020

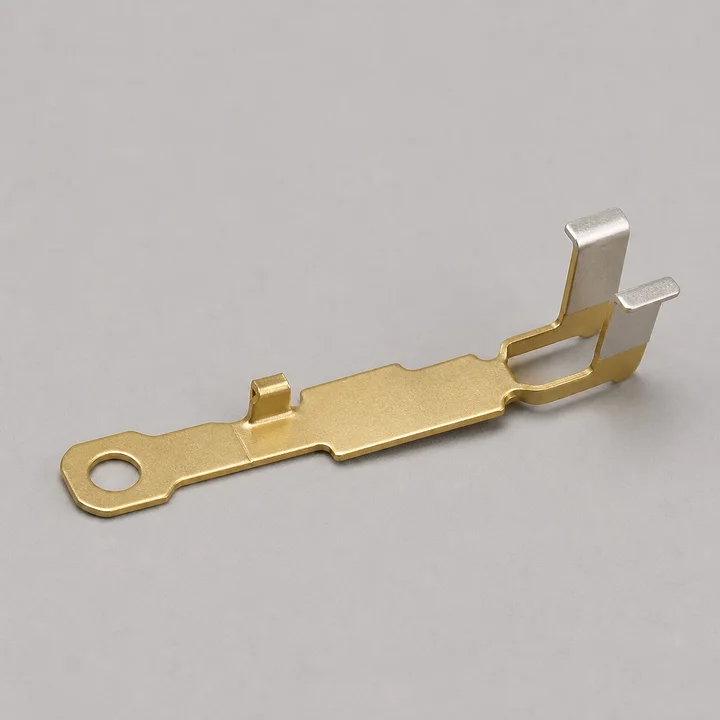

Electrical contact blade produced in 0.6mm C260 brass for high-cycle switching devices. Supplied to print with lot traceability and inspection documentation.
PC-ST-021

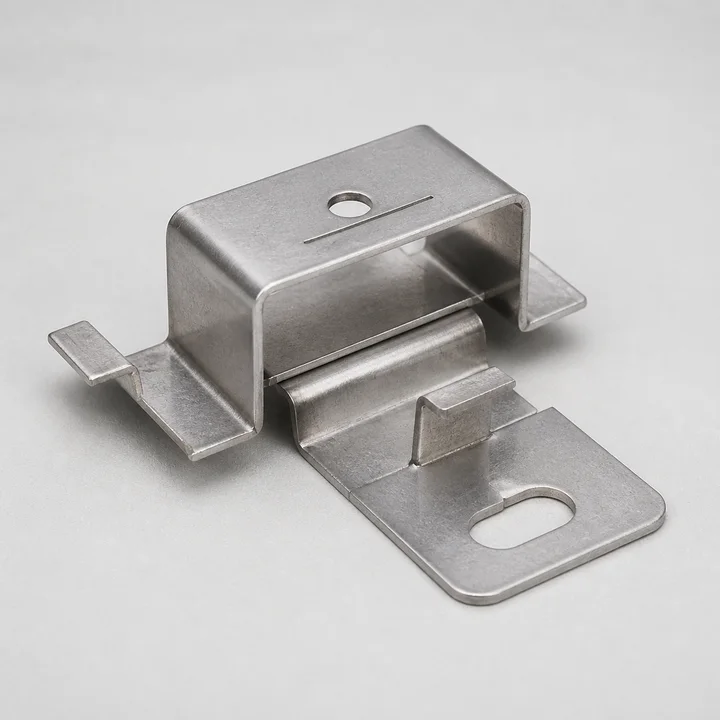

Roof panel seam clip produced in 1.2mm 304 stainless for architectural standing-seam roofs. Supplied to print with lot traceability and inspection documentation.

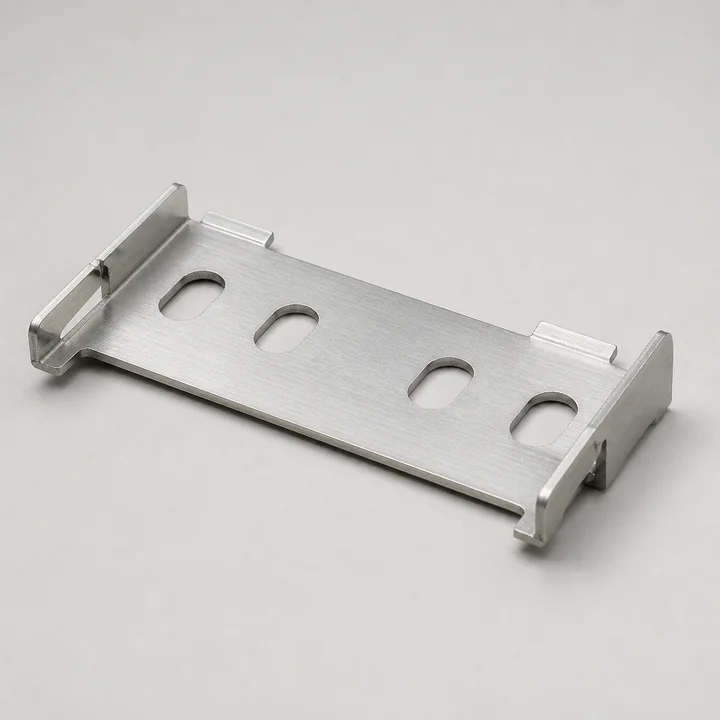

PC-ST-022
Solar rail splice plate produced in 2.0mm 5052-H32 aluminum for photovoltaic mounting rails. Supplied to print with lot traceability and inspection documentation.
PC-ST-023

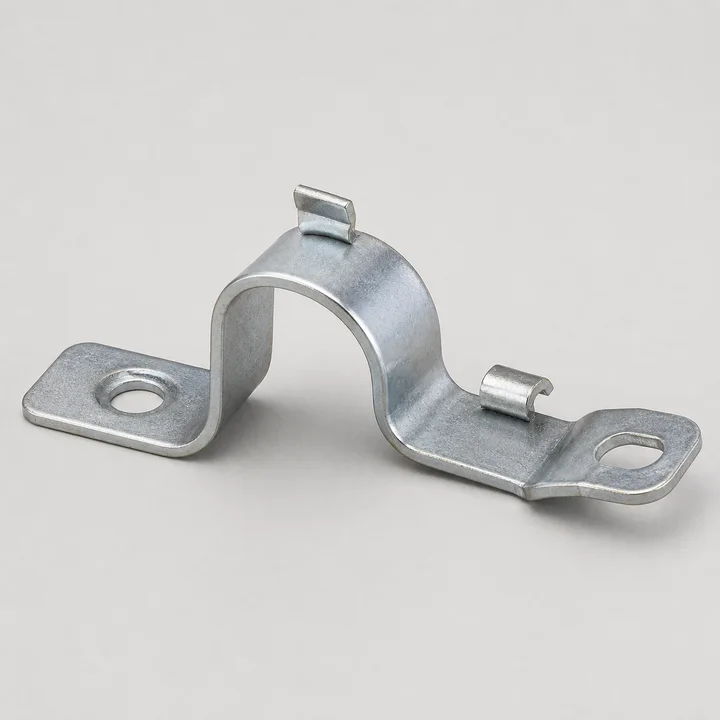

Brake hose bracket produced in 2.5mm HSLA steel for automotive brake-line routing. Supplied to print with lot traceability and inspection documentation.
PC-ST-024

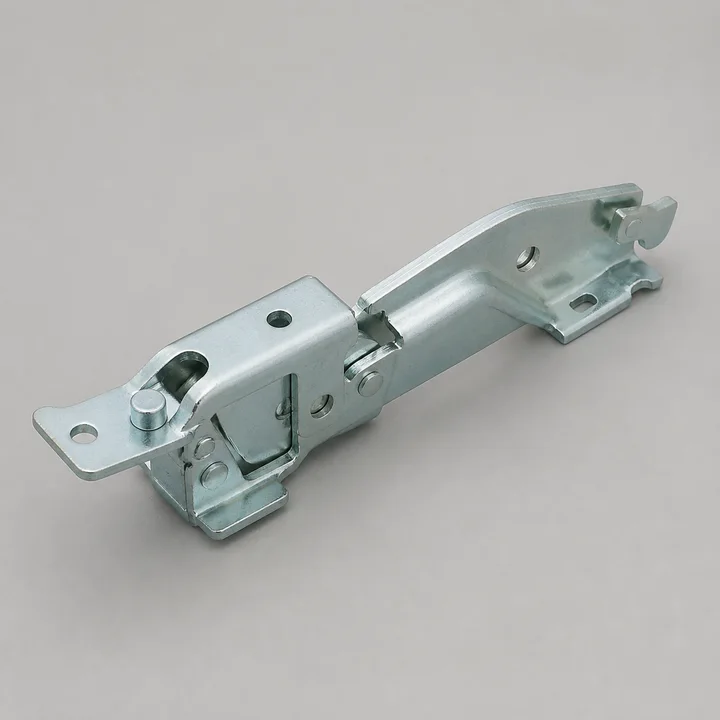

Appliance hinge arm produced in 3.0mm 1010 steel for commercial appliance doors. Supplied to print with lot traceability and inspection documentation.

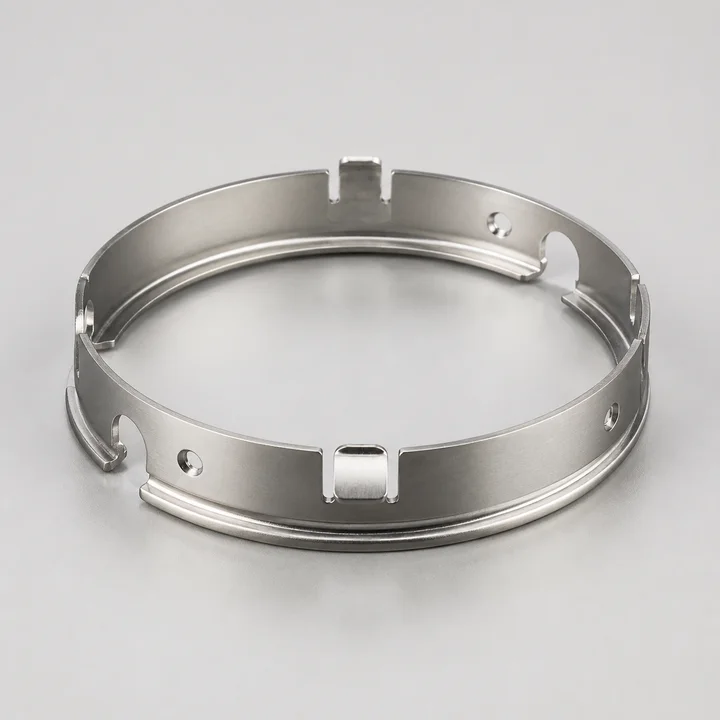

PC-ST-025
Filter screen support ring produced in 1.0mm 316 stainless for sanitary filtration cartridges. Supplied to print with lot traceability and inspection documentation.
02 · 25 product families
Three-, four-, and five-axis milling and turning for close-tolerance components, from prototype qualification through scheduled production. Every new part number receives first-article inspection before release.
PC-CN-001

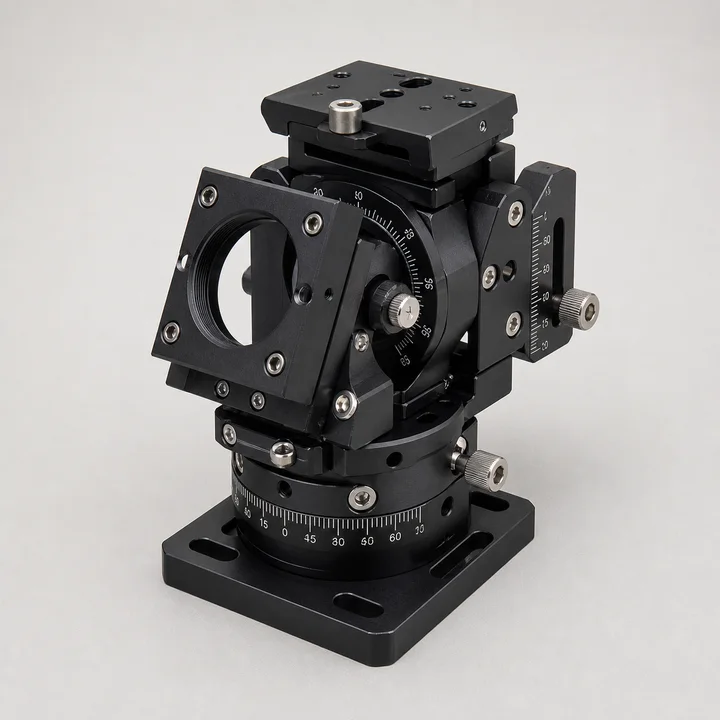

Five-axis optical mount produced in 6061-T6 aluminum for machine-vision camera systems. Supplied to print with lot traceability and inspection documentation.
PC-CN-002

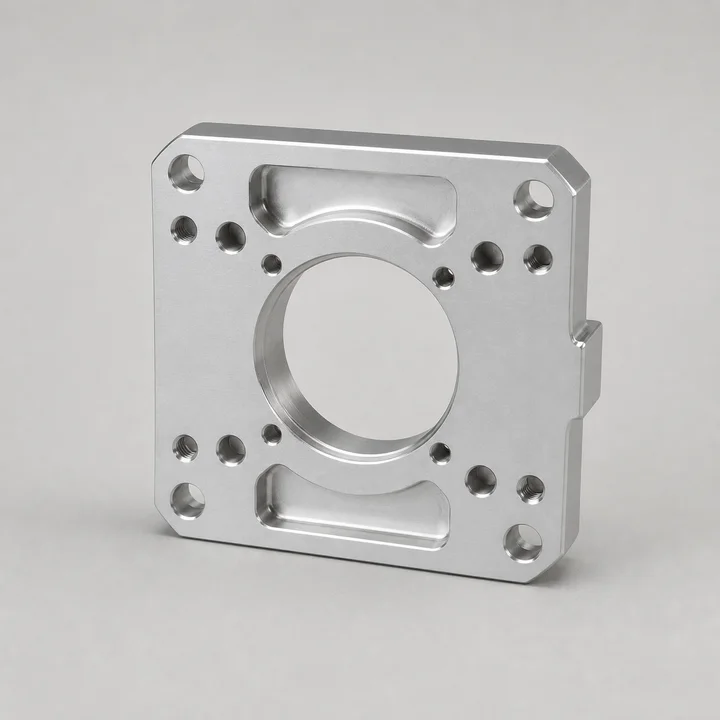

Servo motor adapter plate produced in 6061-T6 aluminum for industrial motion-control assemblies. Supplied to print with lot traceability and inspection documentation.
PC-CN-003

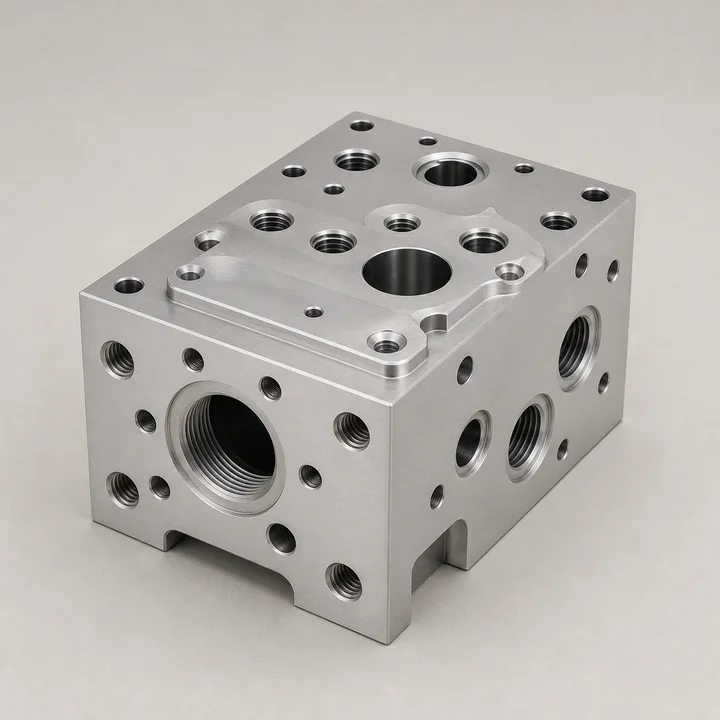

Hydraulic manifold block produced in 7075-T651 aluminum for high-pressure mobile hydraulics. Supplied to print with lot traceability and inspection documentation.
PC-CN-004

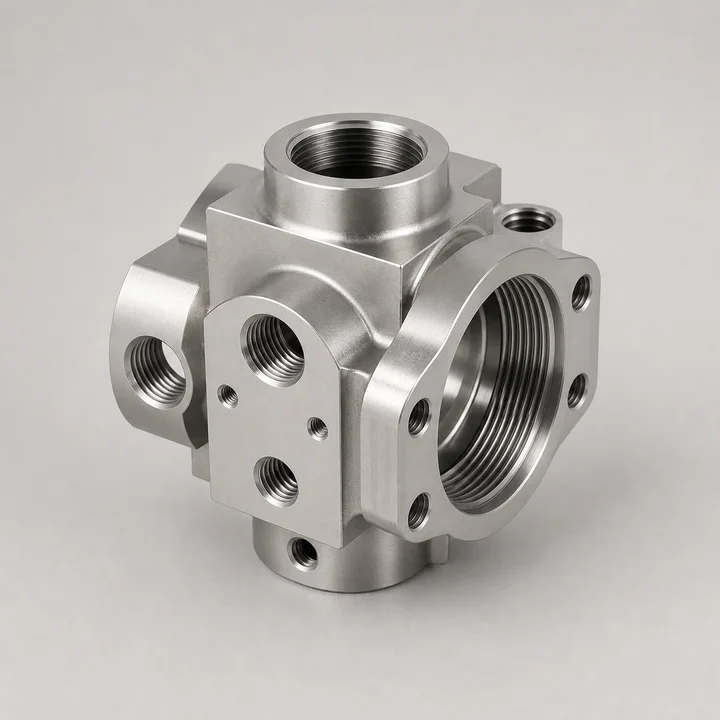

Stainless valve body produced in 316L stainless for corrosive fluid-control systems. Supplied to print with lot traceability and inspection documentation.
PC-CN-005
Precision bearing housing produced in 4140 prehard steel for high-speed spindle assemblies. Supplied to print with lot traceability and inspection documentation.
PC-CN-006

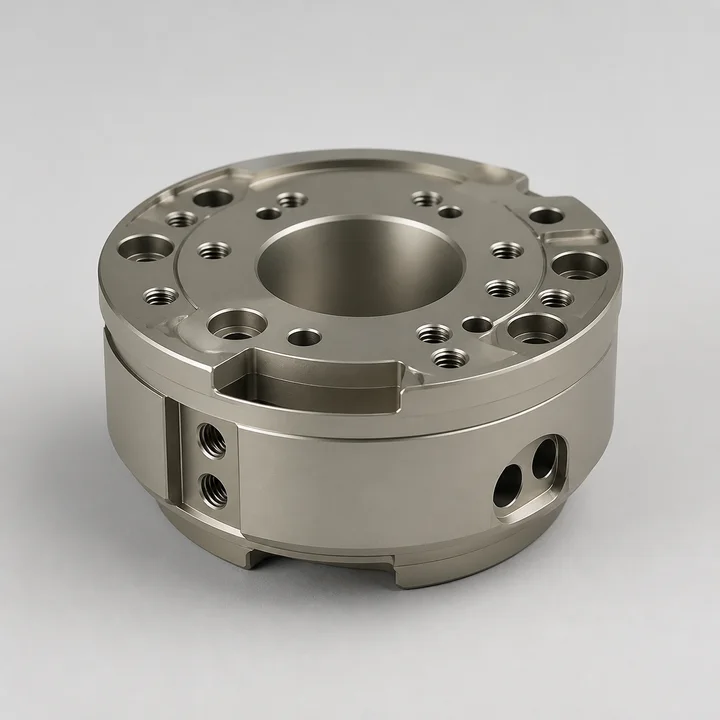

Robotic wrist flange produced in 7075-T6 aluminum for six-axis automation arms. Supplied to print with lot traceability and inspection documentation.
PC-CN-007

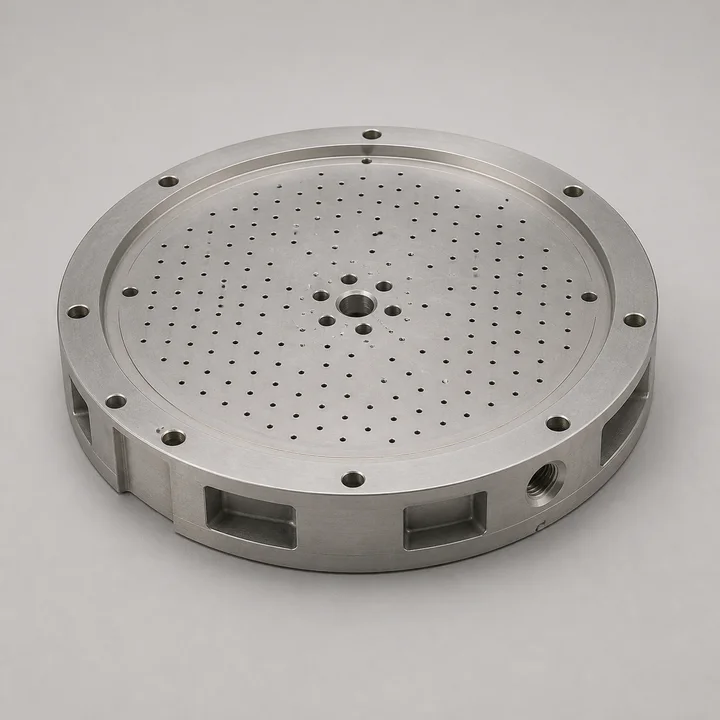

Vacuum chuck plate produced in MIC-6 cast aluminum for semiconductor handling fixtures. Supplied to print with lot traceability and inspection documentation.
PC-CN-008

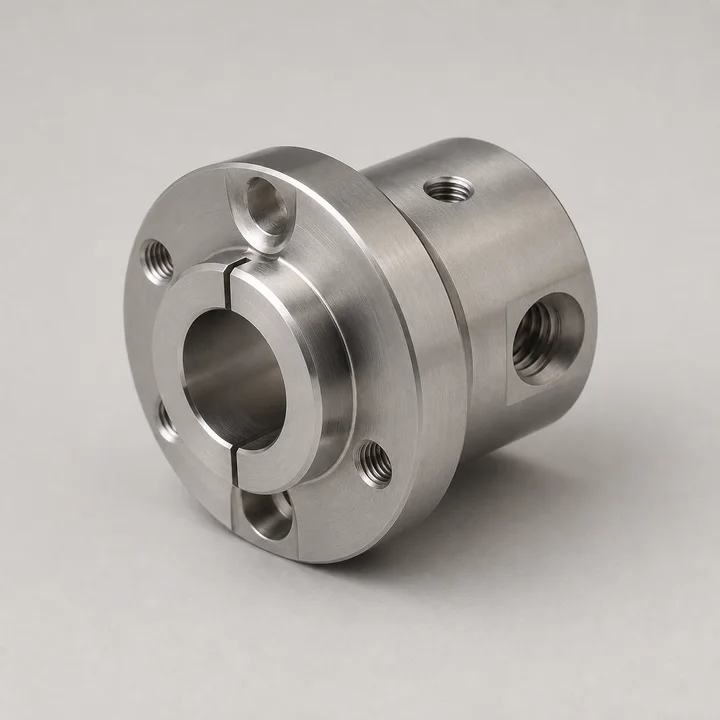

Encoder shaft hub produced in 17-4 PH stainless for precision rotary encoders. Supplied to print with lot traceability and inspection documentation.
PC-CN-009

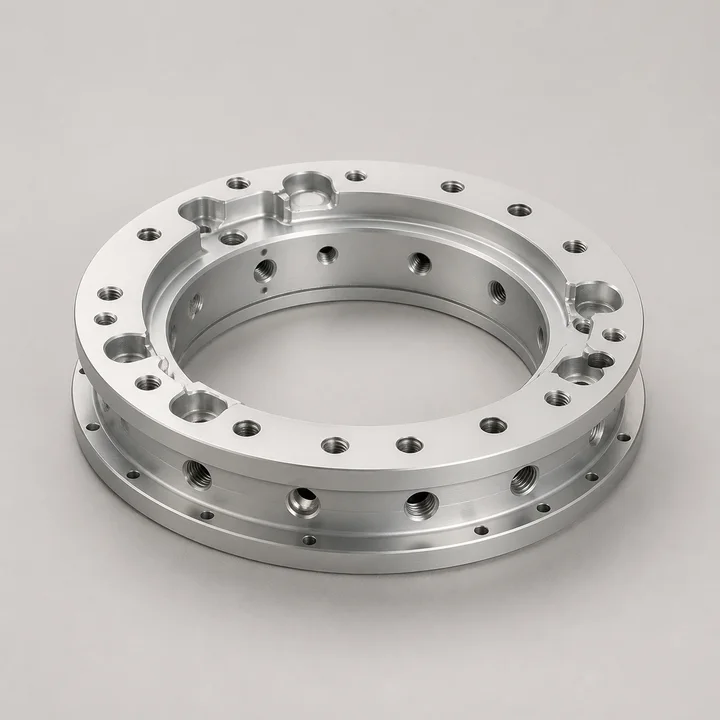

Coolant distribution ring produced in 6061-T6 aluminum for machine-tool spindle cooling. Supplied to print with lot traceability and inspection documentation.
PC-CN-010

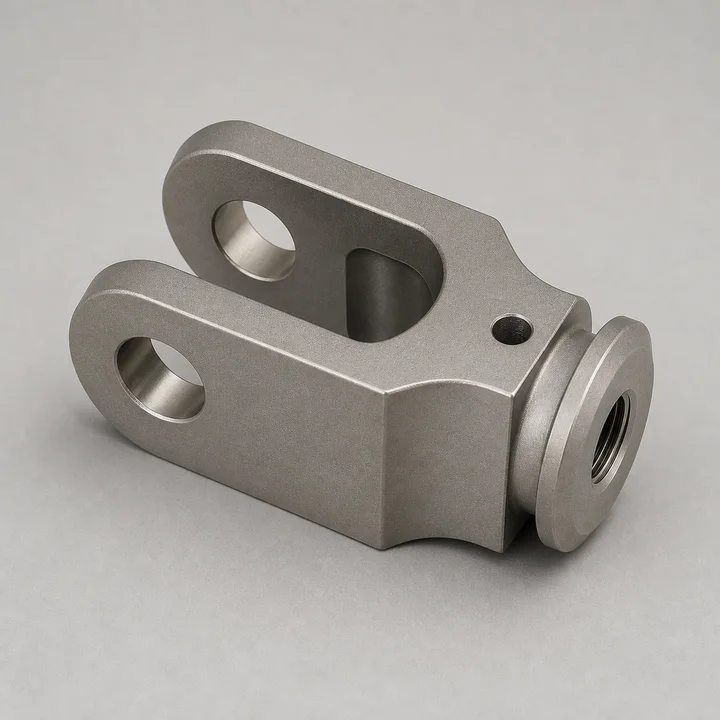

Titanium clevis fitting produced in Ti-6Al-4V for lightweight aerospace linkages. Supplied to print with lot traceability and inspection documentation.
PC-CN-011

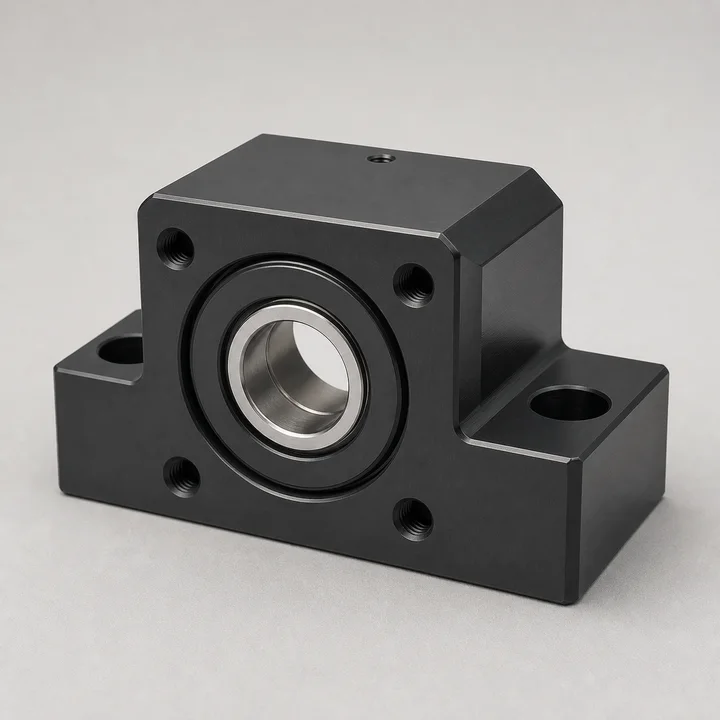

Lead-screw bearing block produced in 6061-T6 aluminum for linear positioning stages. Supplied to print with lot traceability and inspection documentation.
PC-CN-012

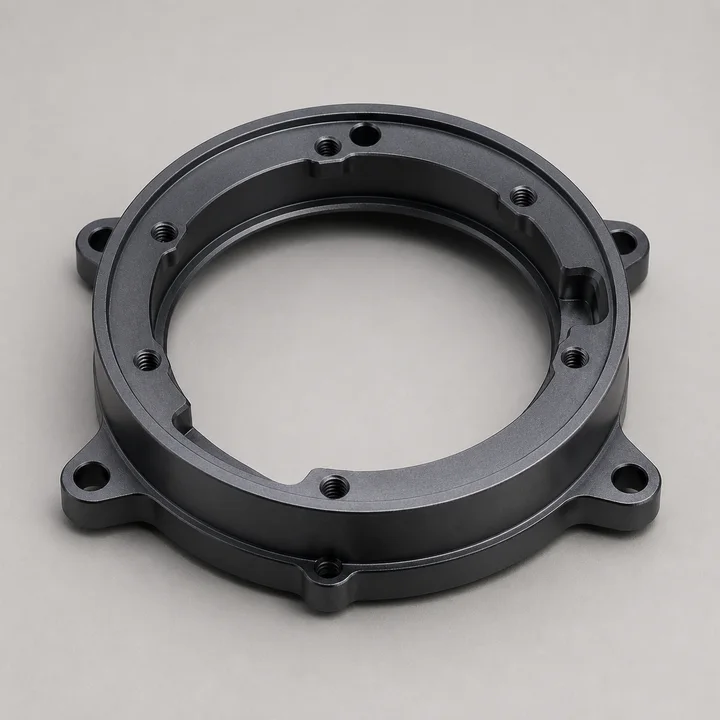

Instrument bezel produced in 6061-T6 aluminum for ruggedized control displays. Supplied to print with lot traceability and inspection documentation.
PC-CN-013

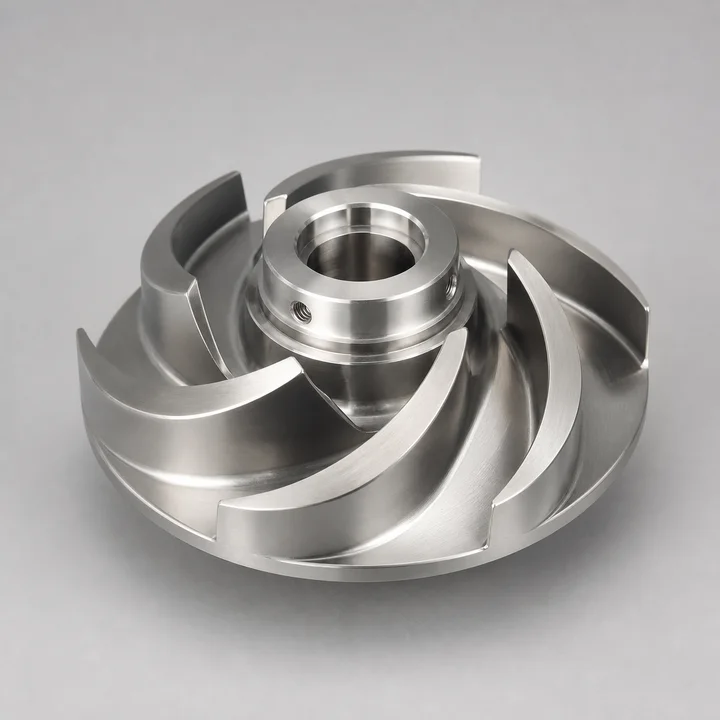

Pump impeller produced in 316 stainless for sanitary process pumps. Supplied to print with lot traceability and inspection documentation.

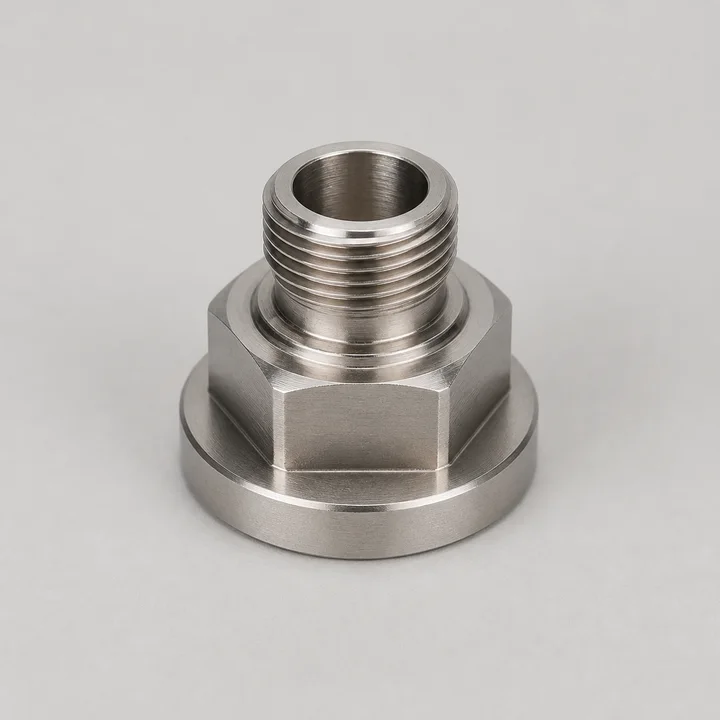

PC-CN-014
Threaded sensor boss produced in 303 stainless for pressure and temperature probes. Supplied to print with lot traceability and inspection documentation.
PC-CN-015

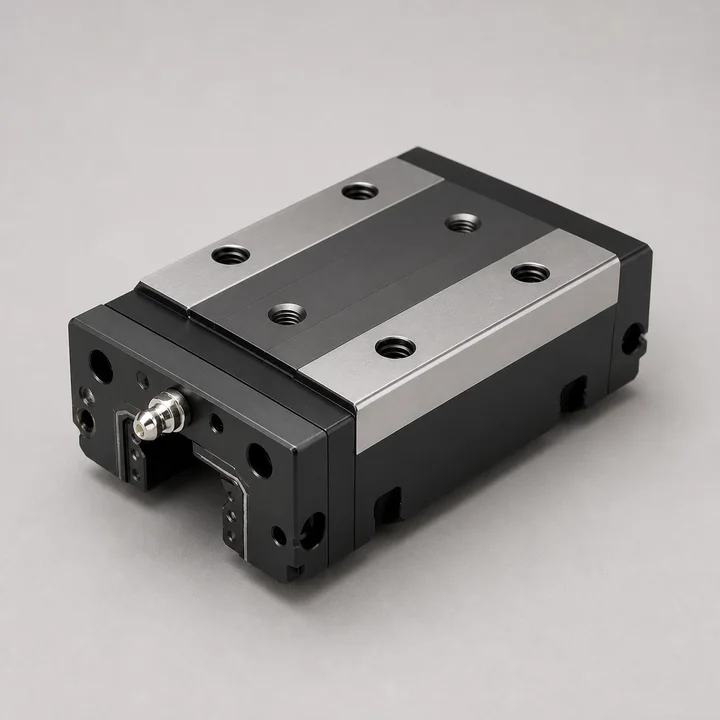

Linear guide carriage produced in 7075-T6 aluminum for precision automation equipment. Supplied to print with lot traceability and inspection documentation.
PC-CN-016

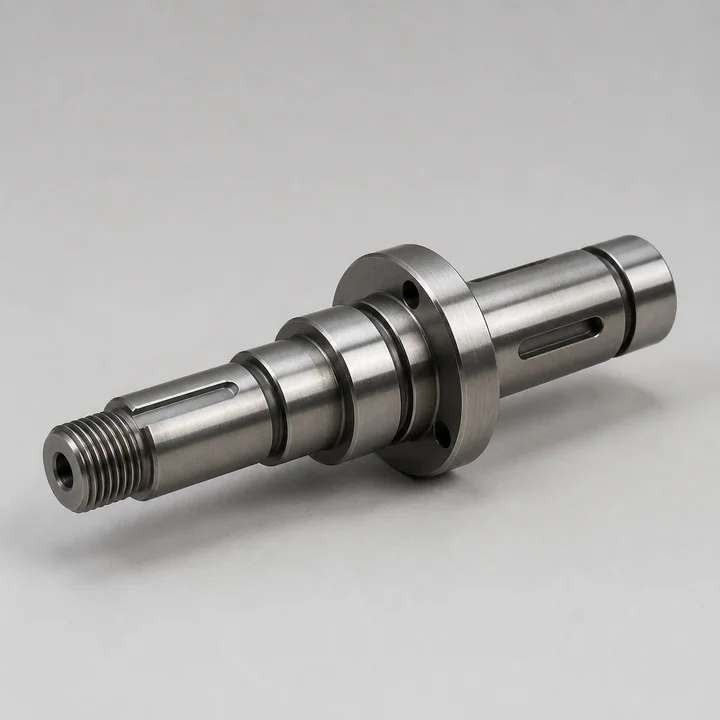

Gearbox output shaft produced in 4140 alloy steel for compact industrial gearboxes. Supplied to print with lot traceability and inspection documentation.
PC-CN-017

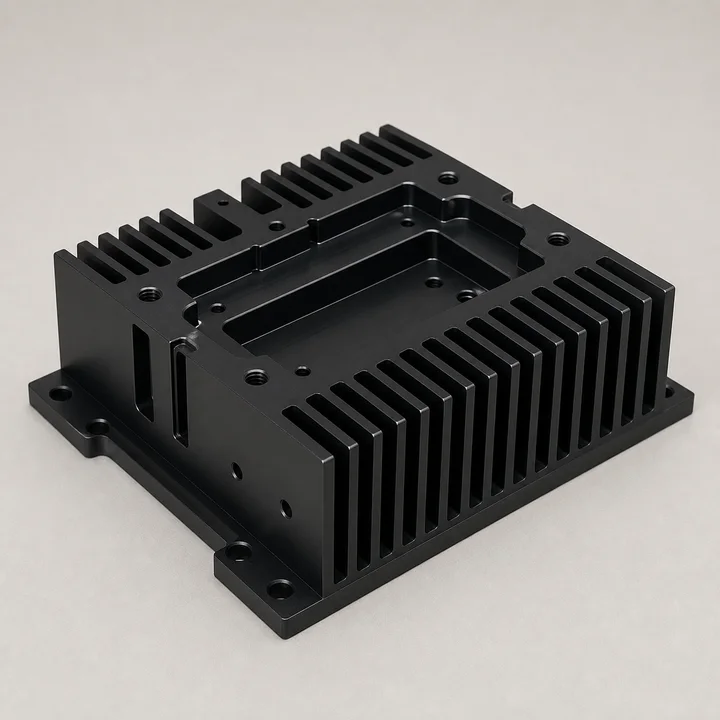

RF amplifier heat sink produced in 6063-T5 aluminum for telecommunications power modules. Supplied to print with lot traceability and inspection documentation.
PC-CN-018

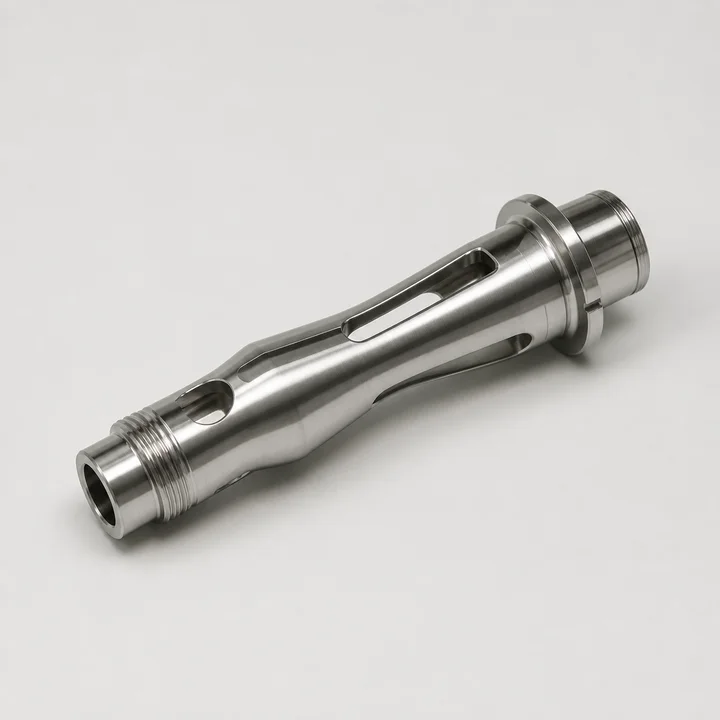

Medical instrument handle produced in 316L stainless for reusable surgical instruments. Supplied to print with lot traceability and inspection documentation.
PC-CN-019

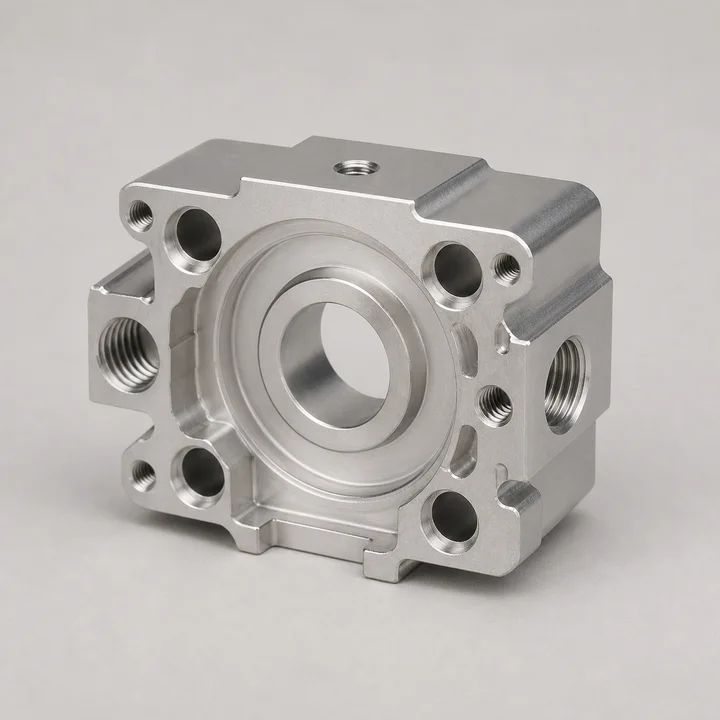

Pneumatic end cap produced in 6061-T6 aluminum for compact air cylinders. Supplied to print with lot traceability and inspection documentation.
PC-CN-020

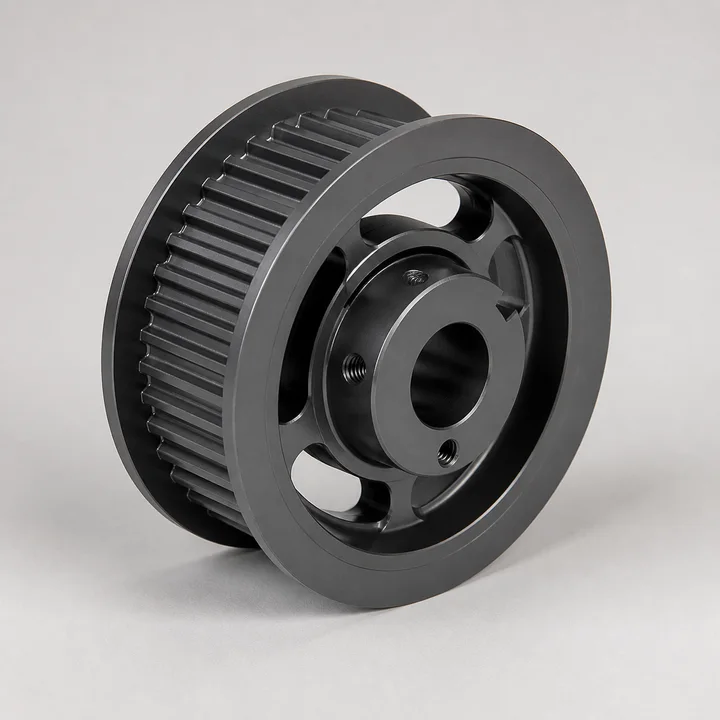

Drive pulley produced in 7075-T6 aluminum for high-speed belt-drive systems. Supplied to print with lot traceability and inspection documentation.
PC-CN-021

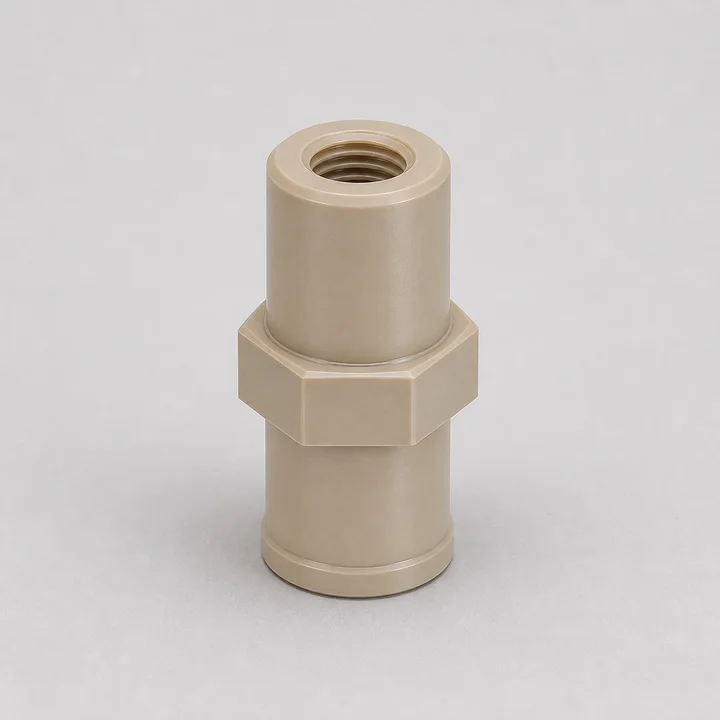

PEEK insulator standoff produced in Natural PEEK for high-temperature electrical assemblies. Supplied to print with lot traceability and inspection documentation.

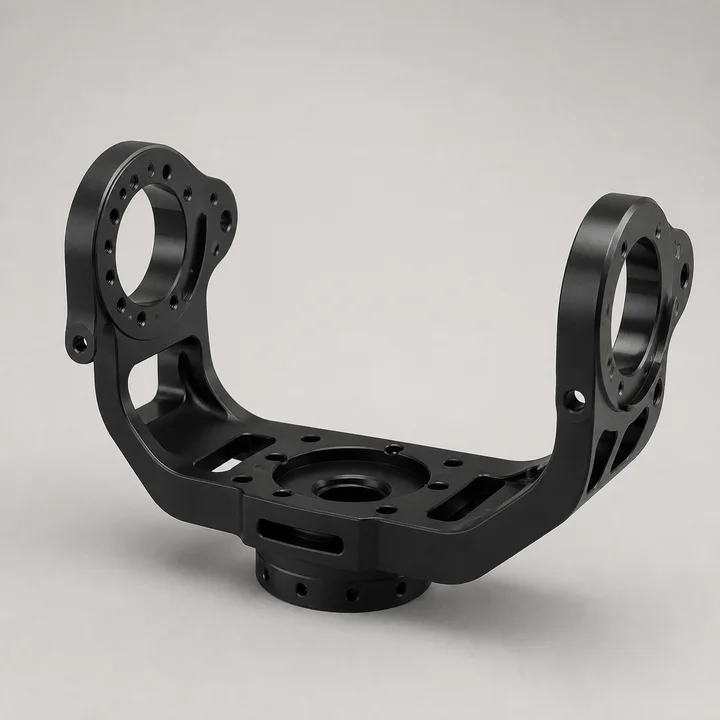

PC-CN-022
Camera gimbal yoke produced in 6061-T6 aluminum for stabilized imaging platforms. Supplied to print with lot traceability and inspection documentation.

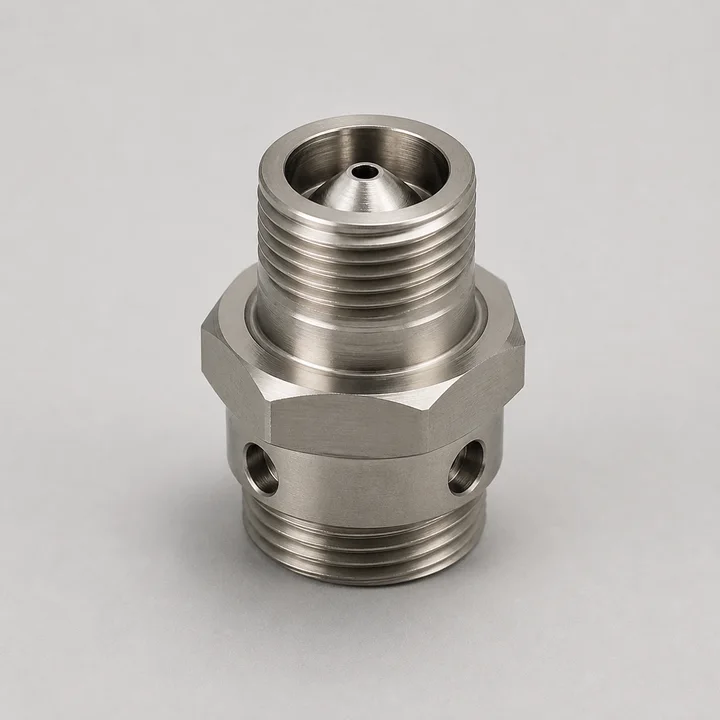

PC-CN-023
Fluid nozzle insert produced in 303 stainless for precision metering equipment. Supplied to print with lot traceability and inspection documentation.
PC-CN-024

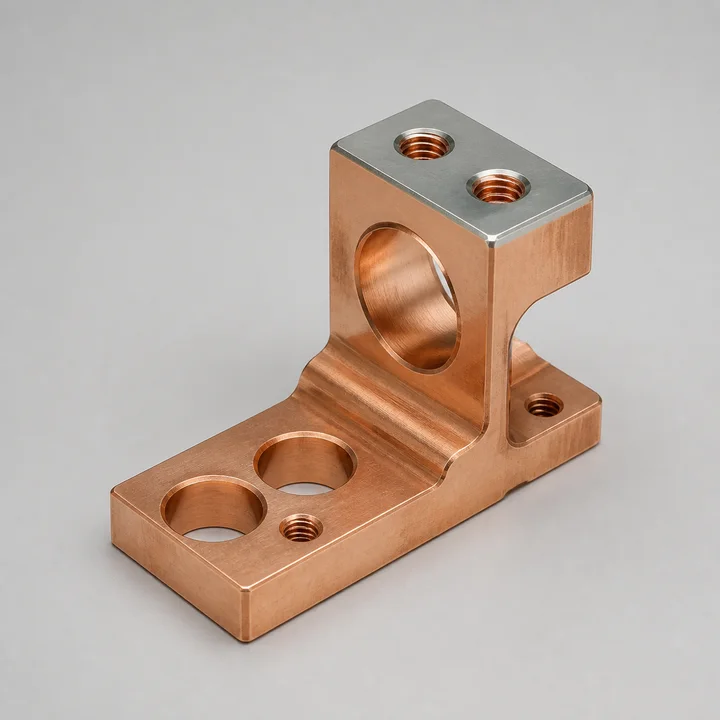

Copper busbar terminal produced in C110 copper for high-current power converters. Supplied to print with lot traceability and inspection documentation.

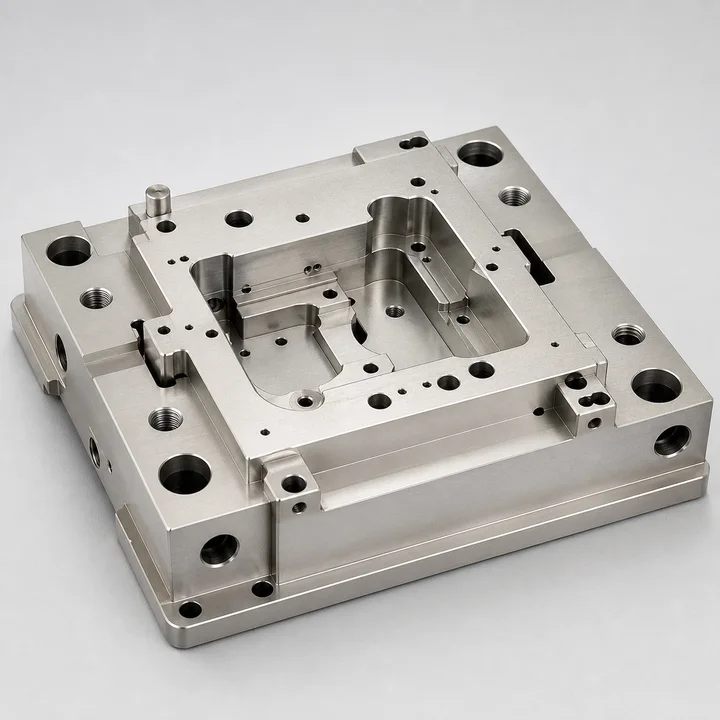

PC-CN-025
Inspection fixture nest produced in P20 tool steel for production metrology fixtures. Supplied to print with lot traceability and inspection documentation.
03 · 25 product families
Standard and engineered fasteners supplied to ANSI, DIN, ISO, and JIS dimensions. Stocking programs include lot control, material certifications, plating documentation, and scheduled releases.
PC-FH-001

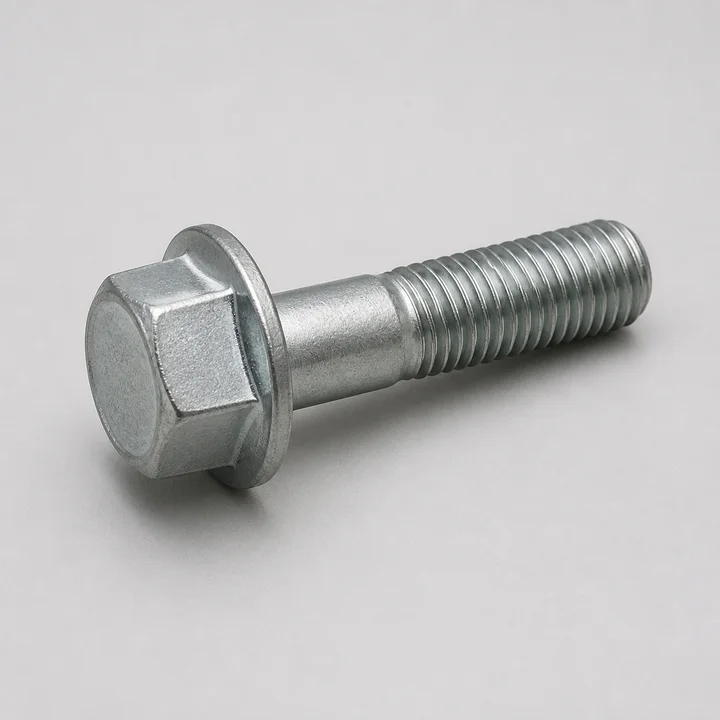

Hex flange bolt M8 × 1.25 produced in Class 10.9 alloy steel for automotive structural joints. Supplied to print with lot traceability and inspection documentation.
PC-FH-002

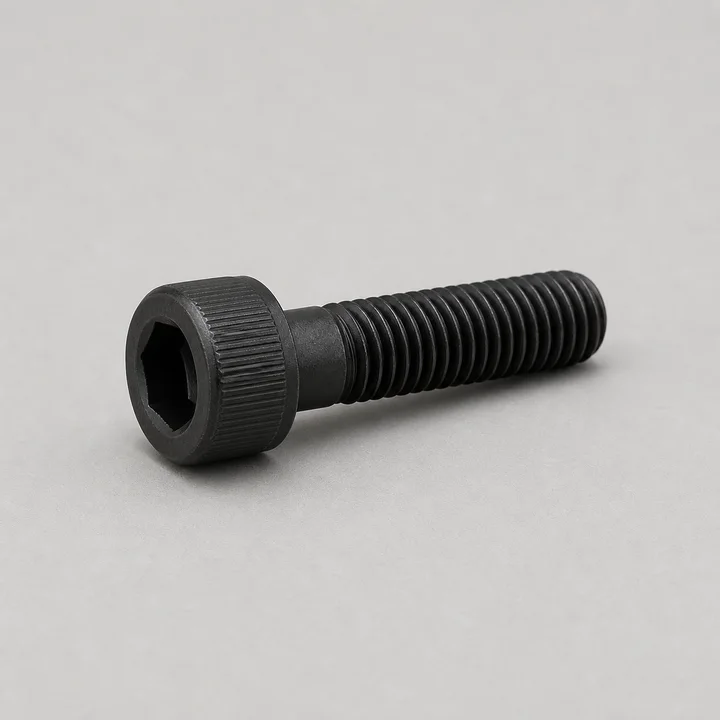

Socket head cap screw M6 × 1.0 produced in Class 12.9 alloy steel for machine and tooling assemblies. Supplied to print with lot traceability and inspection documentation.
PC-FH-003

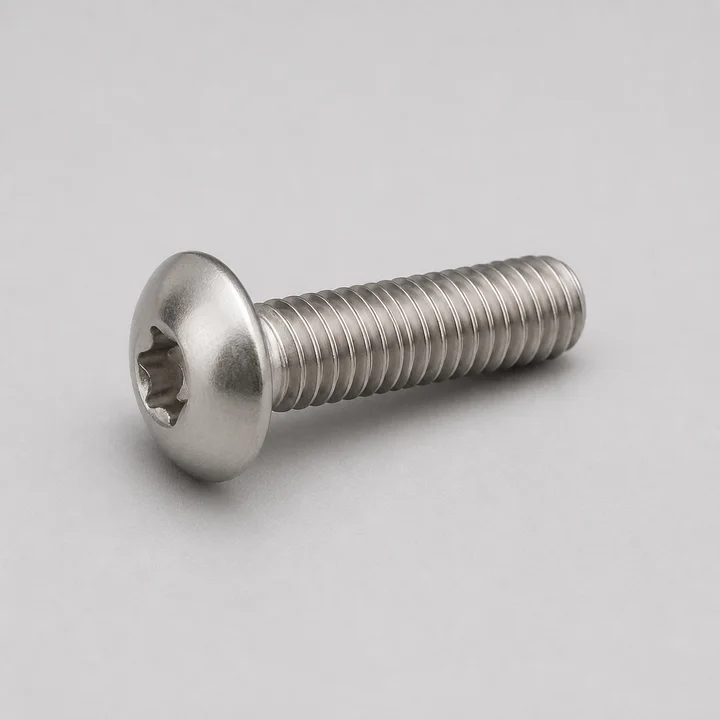

Button head Torx screw M5 × 0.8 produced in A2-70 stainless for low-profile equipment panels. Supplied to print with lot traceability and inspection documentation.
PC-FH-004

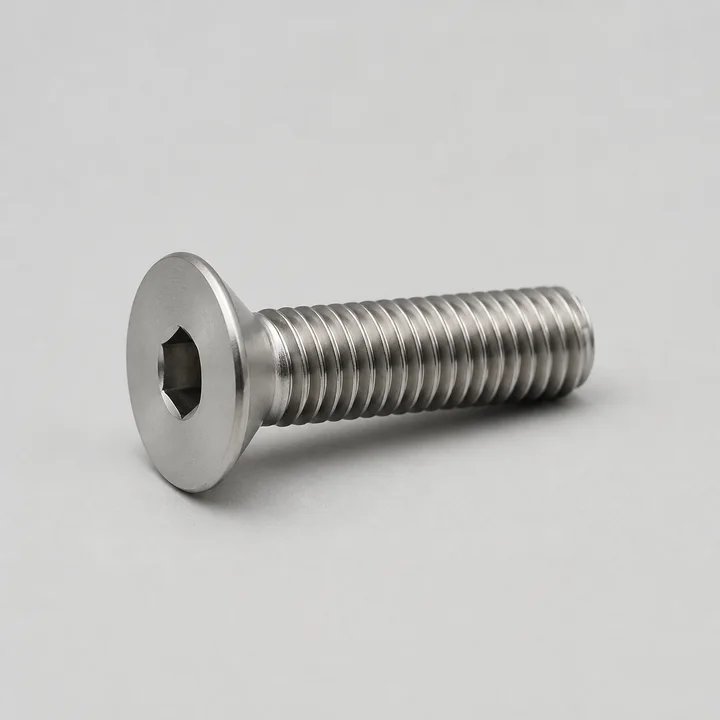

Flat head socket screw 1/4-20 produced in 18-8 stainless for flush-mounted machine guards. Supplied to print with lot traceability and inspection documentation.
PC-FH-005

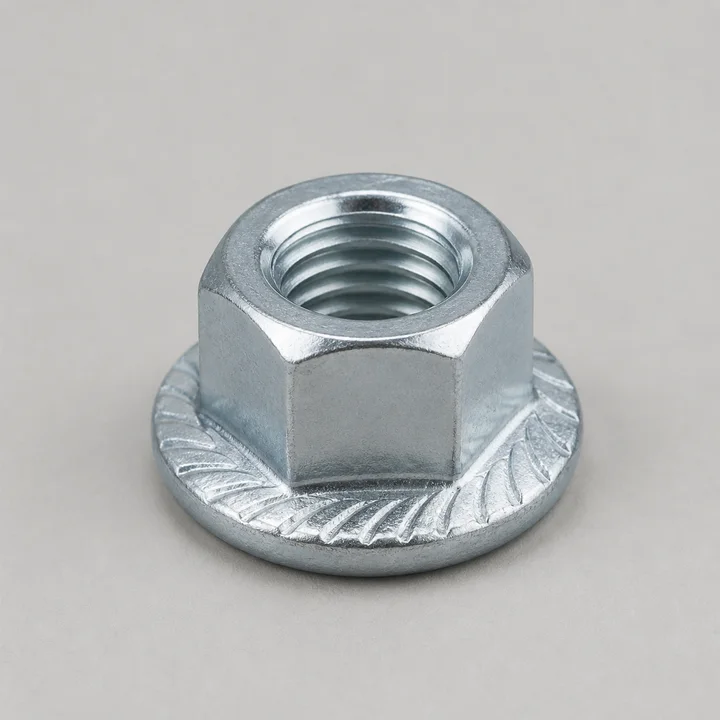

Serrated flange nut M10 × 1.5 produced in Class 10 steel for vibration-prone equipment joints. Supplied to print with lot traceability and inspection documentation.

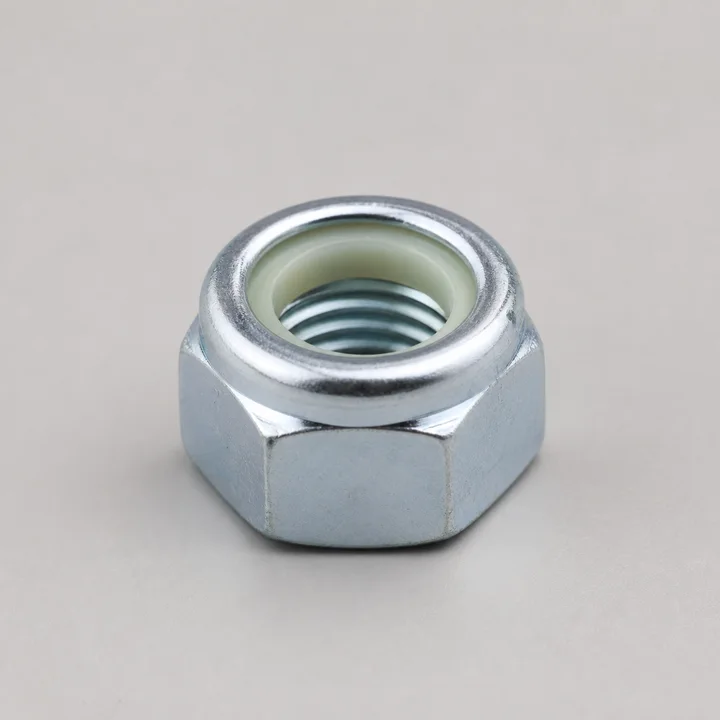

PC-FH-006
Nylon-insert lock nut M6 produced in Class 8 steel for general machinery assemblies. Supplied to print with lot traceability and inspection documentation.
PC-FH-007

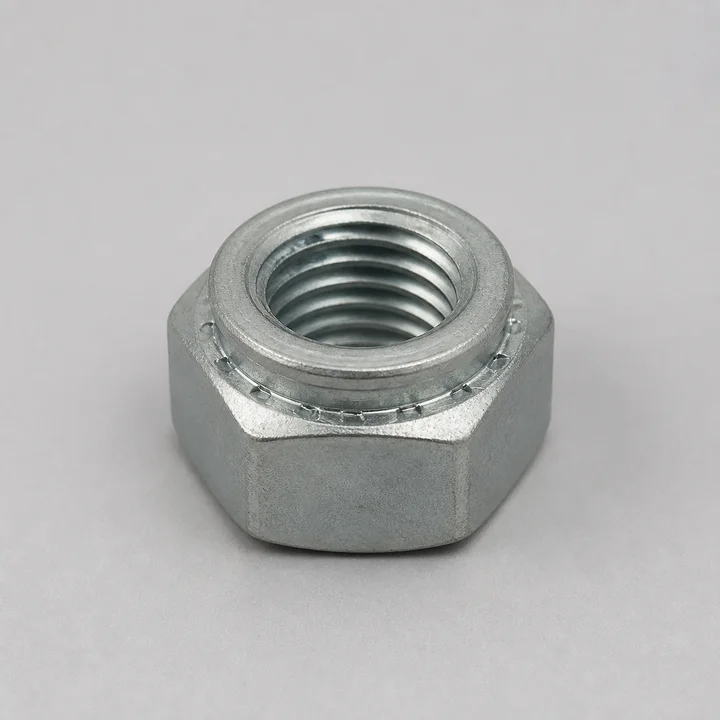

All-metal prevailing torque nut M12 produced in Class 10 steel for high-temperature vehicle joints. Supplied to print with lot traceability and inspection documentation.
PC-FH-008

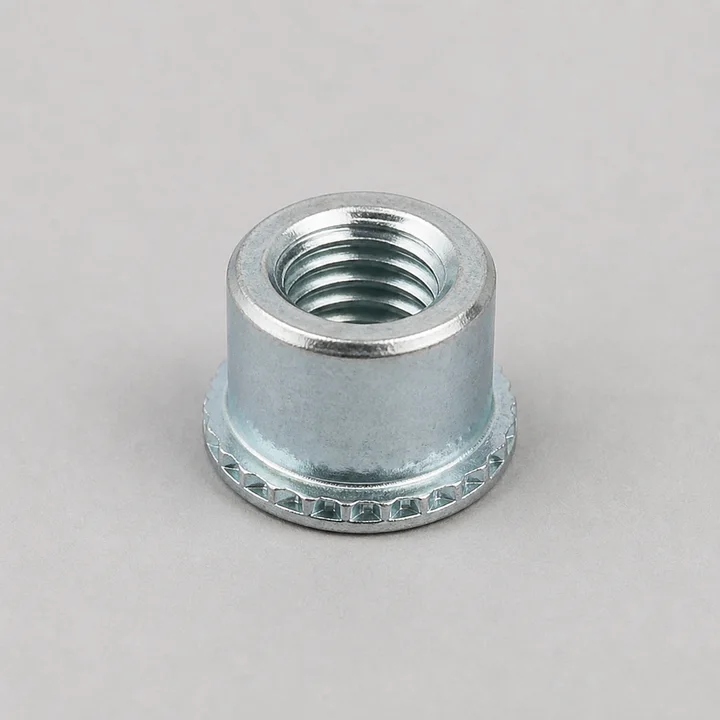

PEM self-clinching nut M4 produced in Heat-treated carbon steel for sheet-metal electronics chassis. Supplied to print with lot traceability and inspection documentation.
PC-FH-009

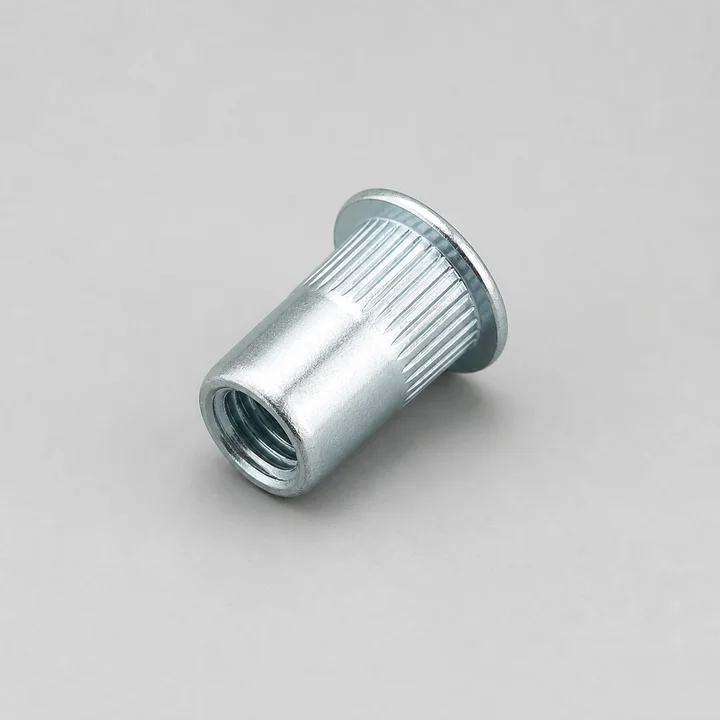

Blind rivet nut M8 produced in Low-carbon steel for one-sided tubular frame assembly. Supplied to print with lot traceability and inspection documentation.
PC-FH-010

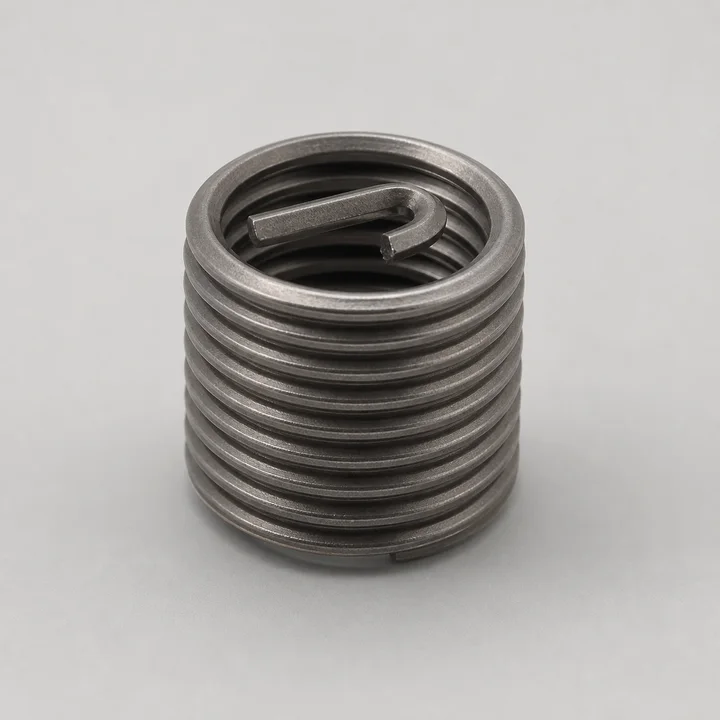

Helical thread insert M5 produced in 304 stainless wire for thread reinforcement in aluminum. Supplied to print with lot traceability and inspection documentation.
PC-FH-011

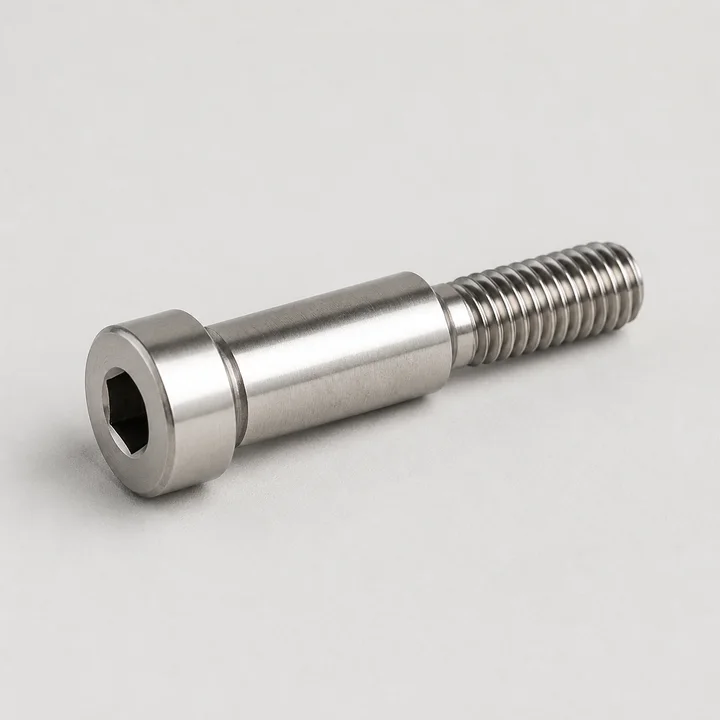

Shoulder screw 8mm × M6 produced in 303 stainless for pivot and guide mechanisms. Supplied to print with lot traceability and inspection documentation.
PC-FH-012

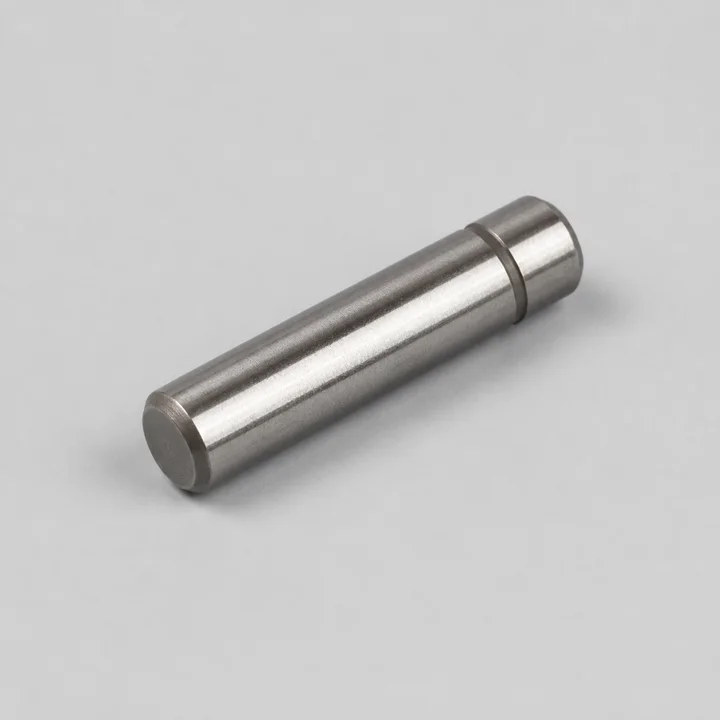

Dowel pin 6mm h6 produced in 52100 bearing steel for precision fixture location. Supplied to print with lot traceability and inspection documentation.
PC-FH-013
Taper pin No. 4 produced in 12L14 steel for repeatable machine alignment. Supplied to print with lot traceability and inspection documentation.

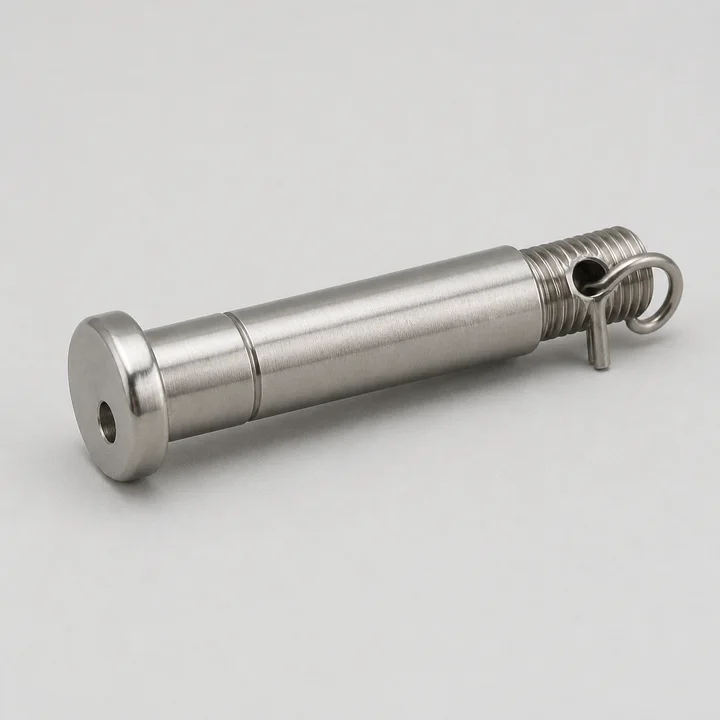

PC-FH-014
Clevis pin 10mm produced in 17-4 PH stainless for removable linkage joints. Supplied to print with lot traceability and inspection documentation.
PC-FH-015

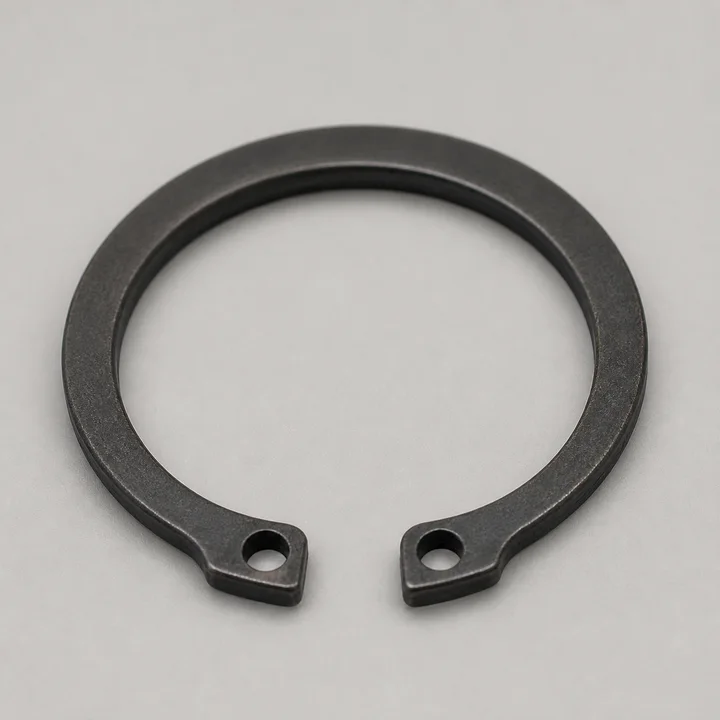

Retaining ring 25mm external produced in 1074 spring steel for shaft component retention. Supplied to print with lot traceability and inspection documentation.
PC-FH-016
Wave spring washer 30mm produced in 17-7 PH stainless for compact bearing preload. Supplied to print with lot traceability and inspection documentation.
PC-FH-017

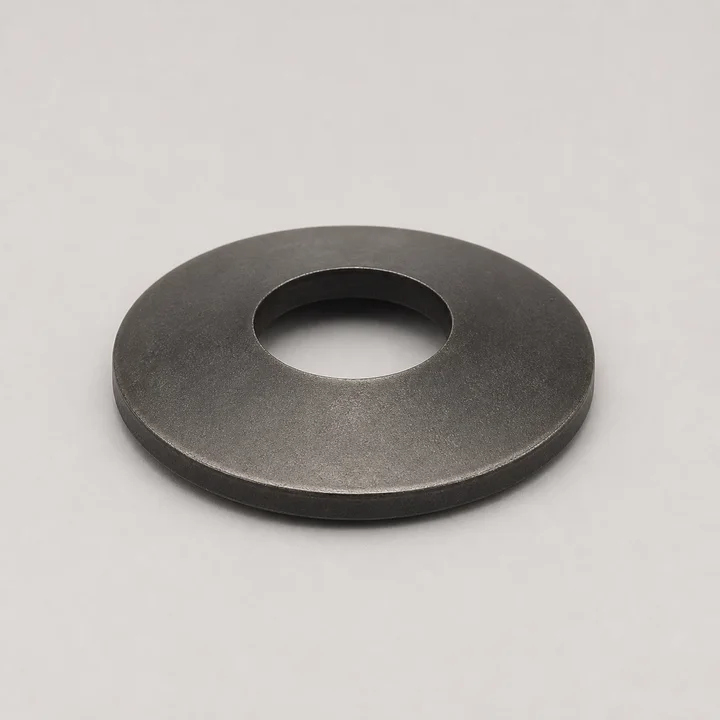

Belleville washer M12 produced in 51CrV4 spring steel for high-load bolt preload. Supplied to print with lot traceability and inspection documentation.
PC-FH-018

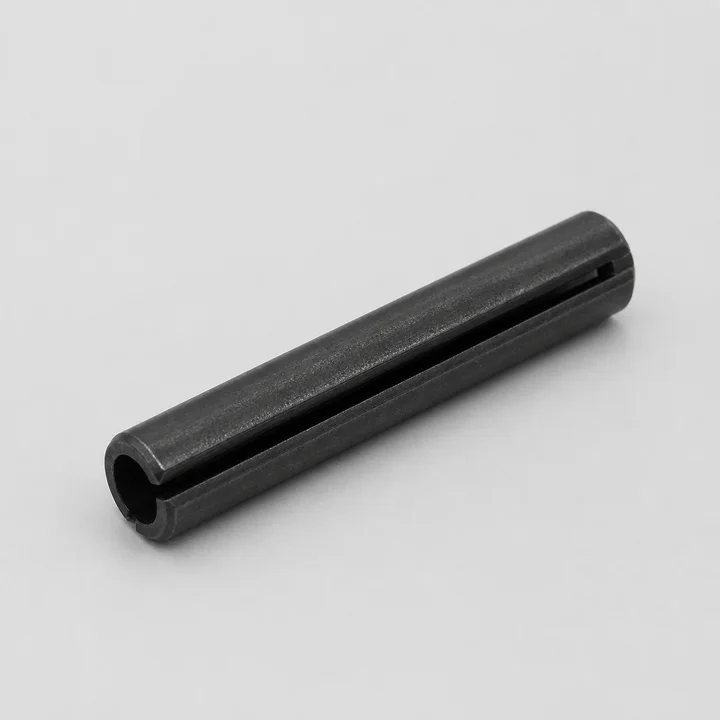

Slotted spring pin 5 × 30mm produced in 1074 spring steel for hinge and shear connections. Supplied to print with lot traceability and inspection documentation.
PC-FH-019

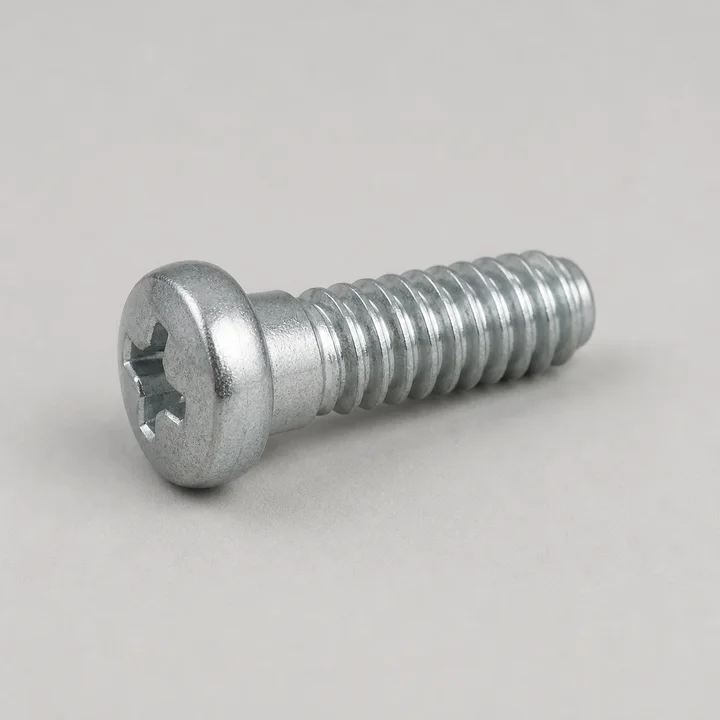

Thread-forming screw M4 × 12 produced in Case-hardened carbon steel for direct assembly into ductile metal. Supplied to print with lot traceability and inspection documentation.

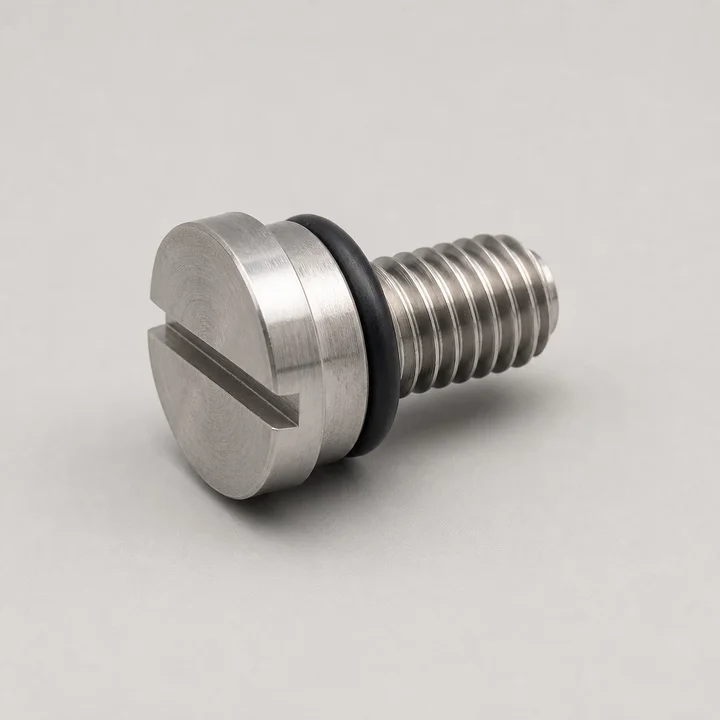

PC-FH-020
Sealing screw 1/4-28 produced in A4 stainless with fluoropolymer O-ring for weather-sealed instrument housings. Supplied to print with lot traceability and inspection documentation.
PC-FH-021
Weld stud M6 × 20 produced in Low-carbon steel for drawn-arc sheet assemblies. Supplied to print with lot traceability and inspection documentation.

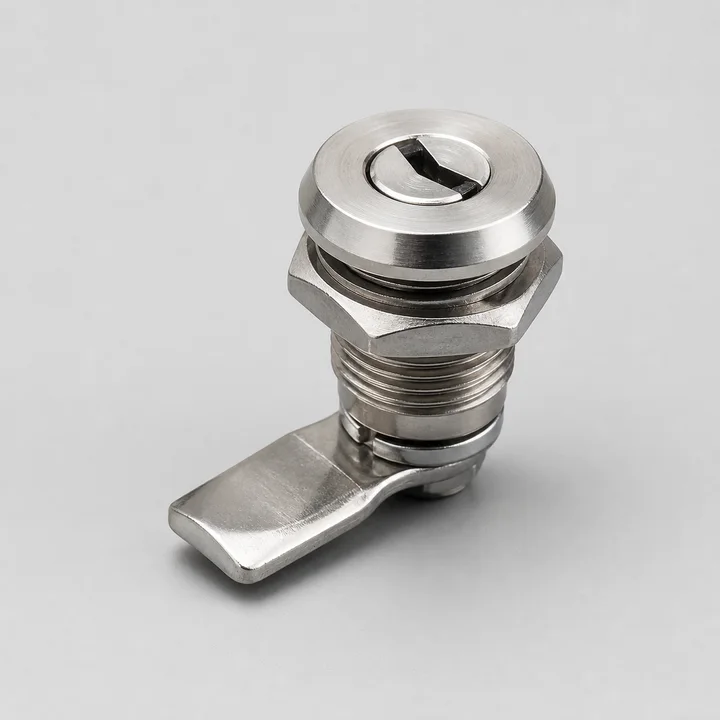

PC-FH-022
Quarter-turn panel fastener produced in 300-series stainless for service-access equipment panels. Supplied to print with lot traceability and inspection documentation.
PC-FH-023

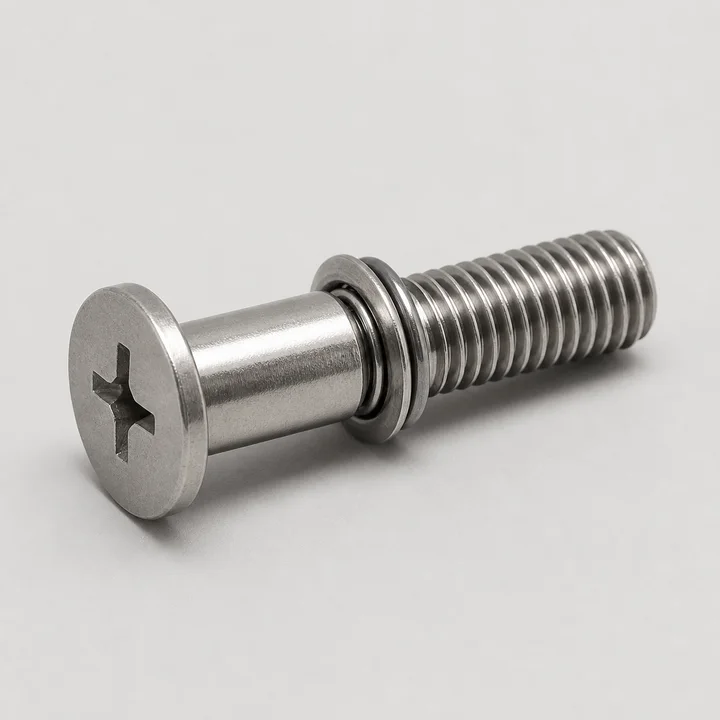

Captive panel screw M4 produced in 303 stainless for frequently serviced electronics. Supplied to print with lot traceability and inspection documentation.
PC-FH-024

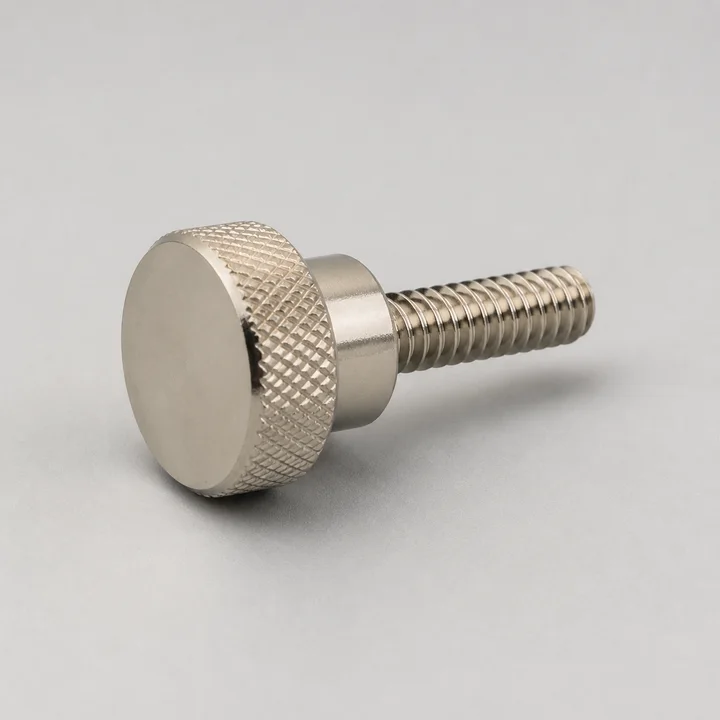

Knurled thumb screw M5 produced in C360 brass for tool-free adjustment points. Supplied to print with lot traceability and inspection documentation.
PC-FH-025

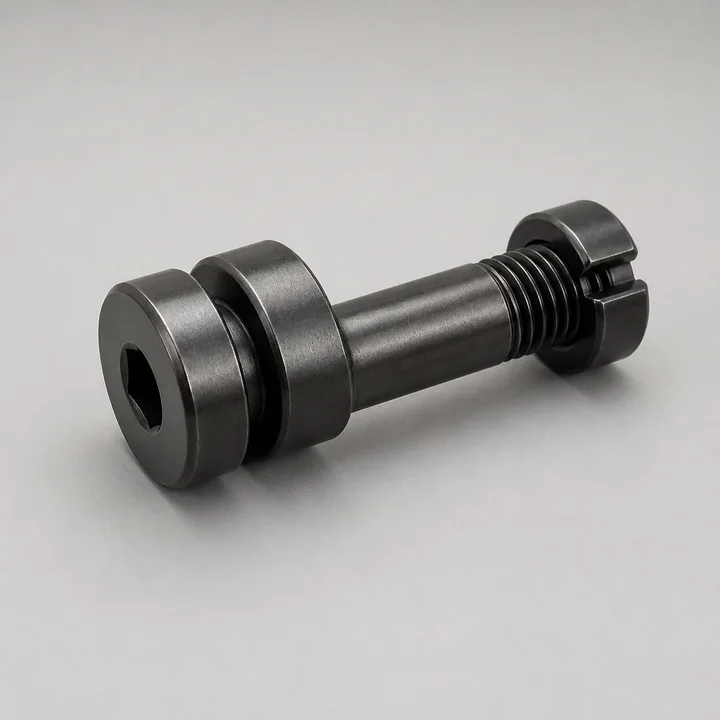

Custom eccentric shoulder bolt produced in 4140 alloy steel for adjustable cam mechanisms. Supplied to print with lot traceability and inspection documentation.
04 · 25 product families
Die, sand, and investment cast components in aluminum, zinc, and iron. Castings can be heat-treated, machined, coated, pressure-tested, and assembled before delivery.

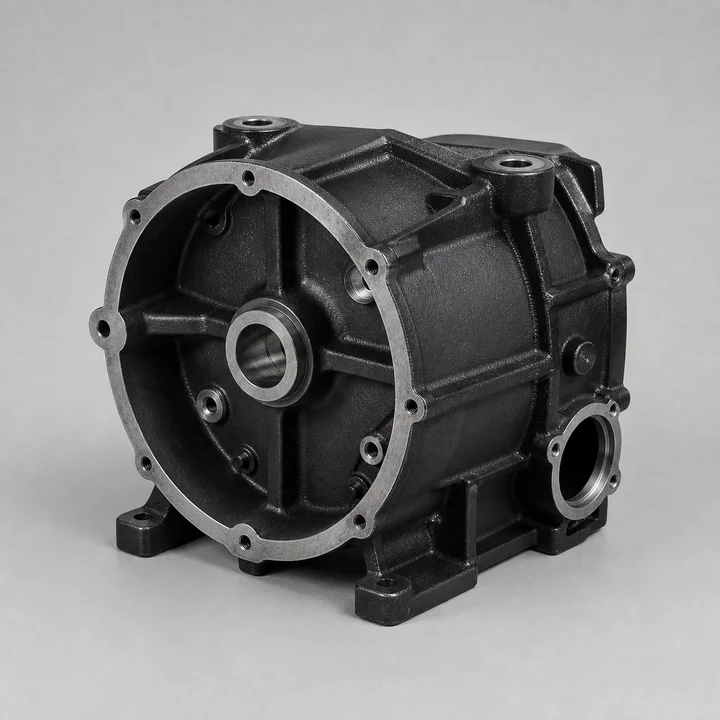

PC-CA-001
Die-cast motor housing produced in A380 aluminum for fractional motor assemblies. Supplied to print with lot traceability and inspection documentation.

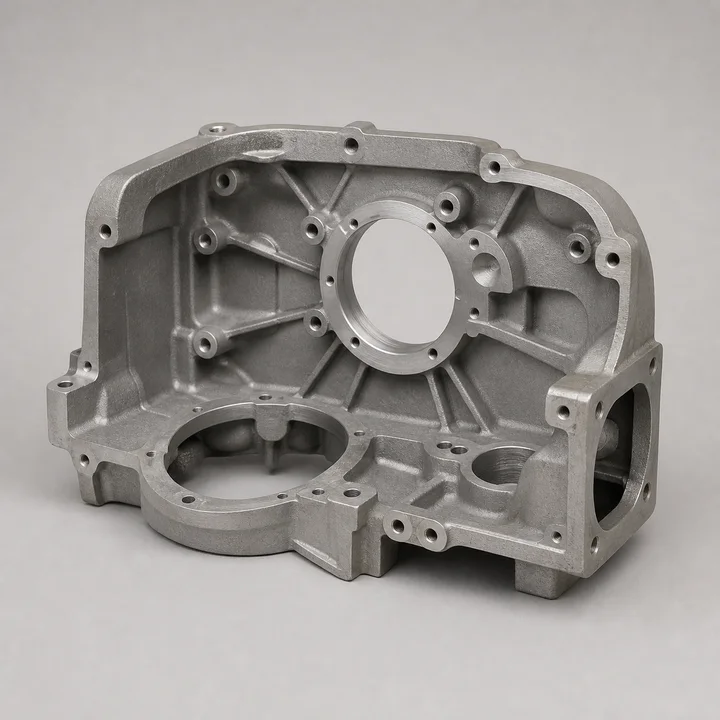

PC-CA-002
Gearbox case half produced in A356-T6 aluminum for industrial reduction gearboxes. Supplied to print with lot traceability and inspection documentation.

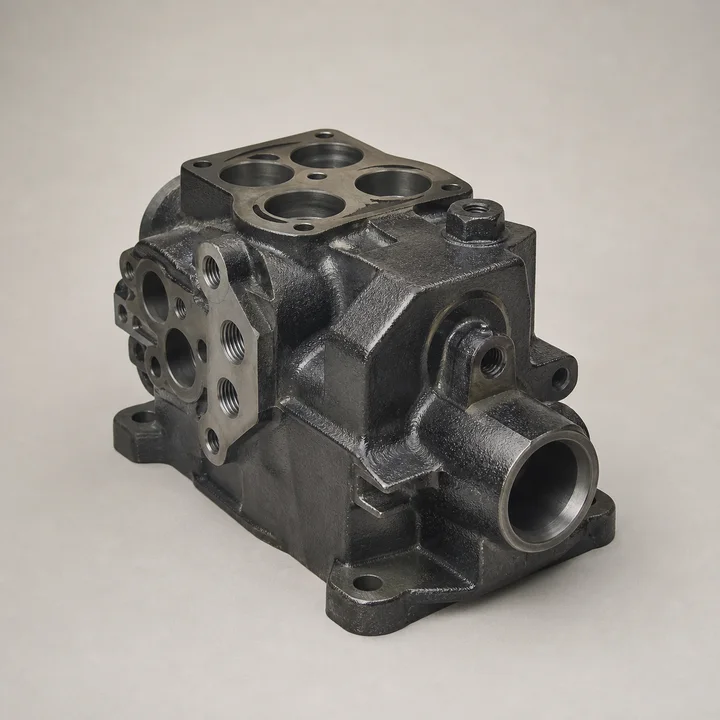

PC-CA-003
Hydraulic valve housing produced in Ductile iron 65-45-12 for mobile hydraulic controls. Supplied to print with lot traceability and inspection documentation.
PC-CA-004

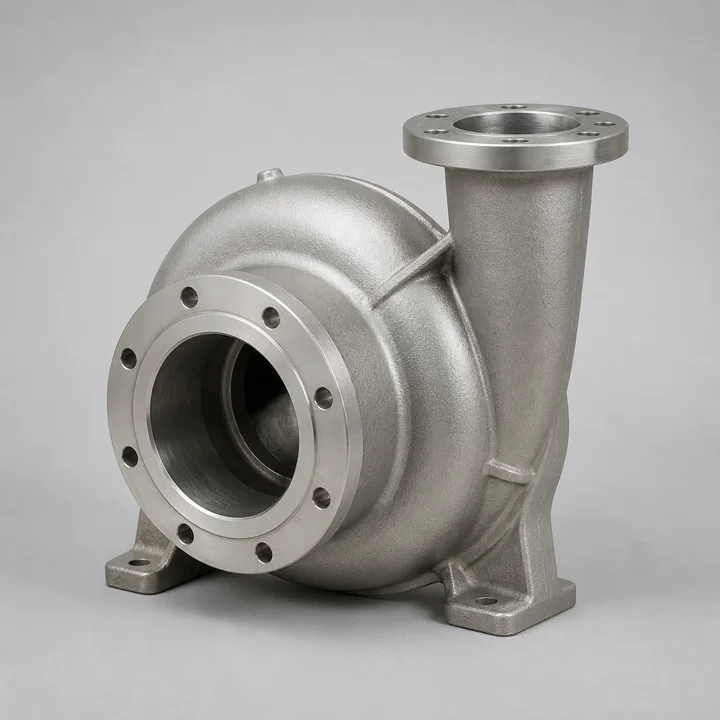

Pump volute produced in CF8M stainless for corrosive process pumps. Supplied to print with lot traceability and inspection documentation.
PC-CA-005

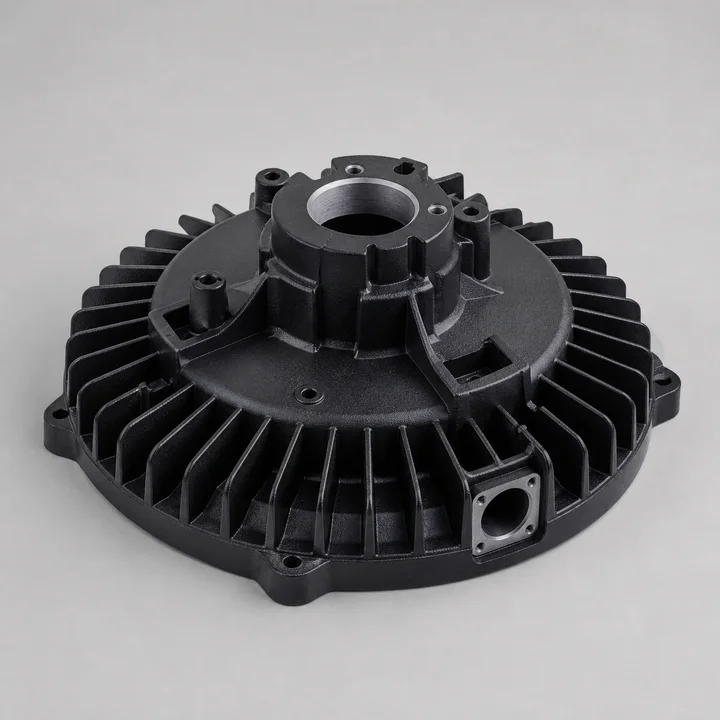

LED heat-sink body produced in ADC12 aluminum for outdoor area luminaires. Supplied to print with lot traceability and inspection documentation.
PC-CA-006

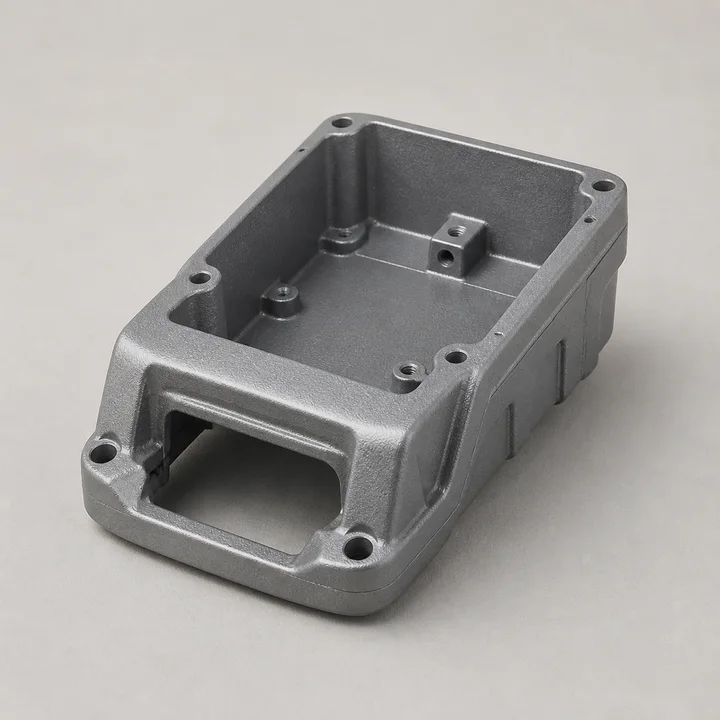

Instrument enclosure casting produced in ZA-8 zinc for rugged handheld instruments. Supplied to print with lot traceability and inspection documentation.
PC-CA-007

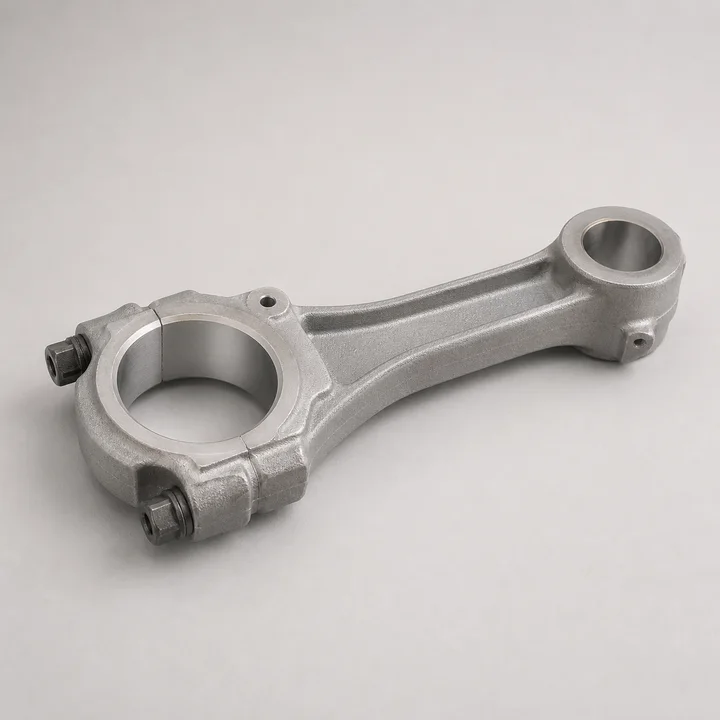

Compressor connecting rod produced in A201 aluminum for oil-free air compressors. Supplied to print with lot traceability and inspection documentation.
PC-CA-008

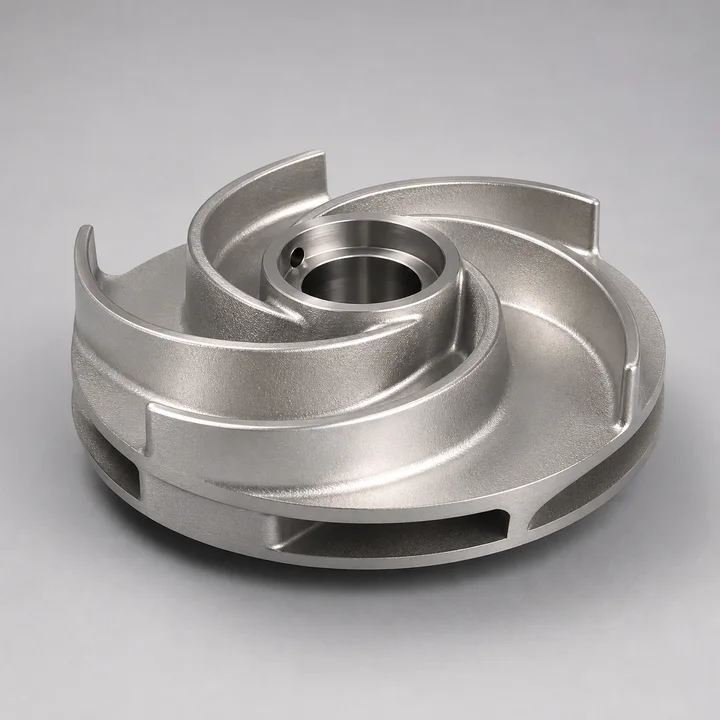

Stainless impeller produced in CF8M stainless for sanitary centrifugal pumps. Supplied to print with lot traceability and inspection documentation.
PC-CA-009

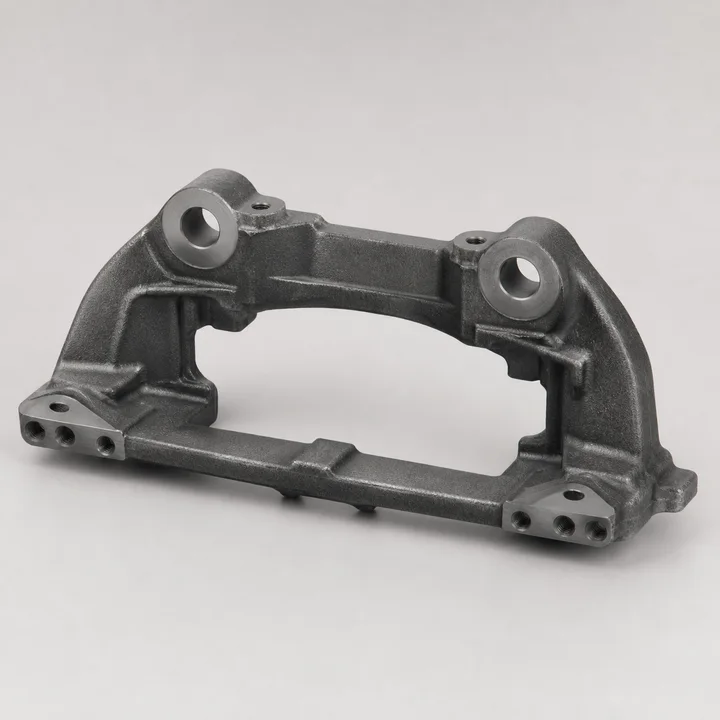

Brake caliper bracket produced in Ductile iron 80-55-06 for commercial vehicle brakes. Supplied to print with lot traceability and inspection documentation.
PC-CA-010

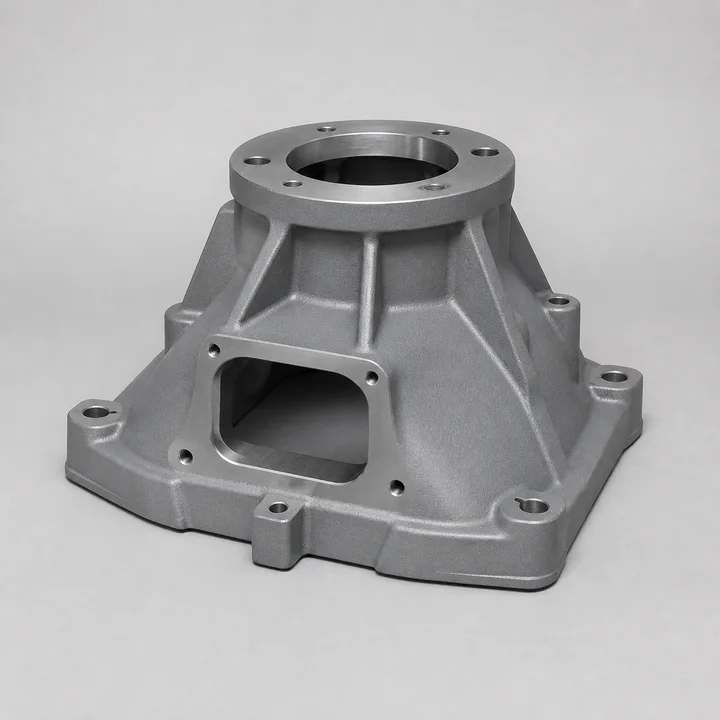

Robotic base pedestal produced in A356-T6 aluminum for collaborative robot systems. Supplied to print with lot traceability and inspection documentation.
PC-CA-011

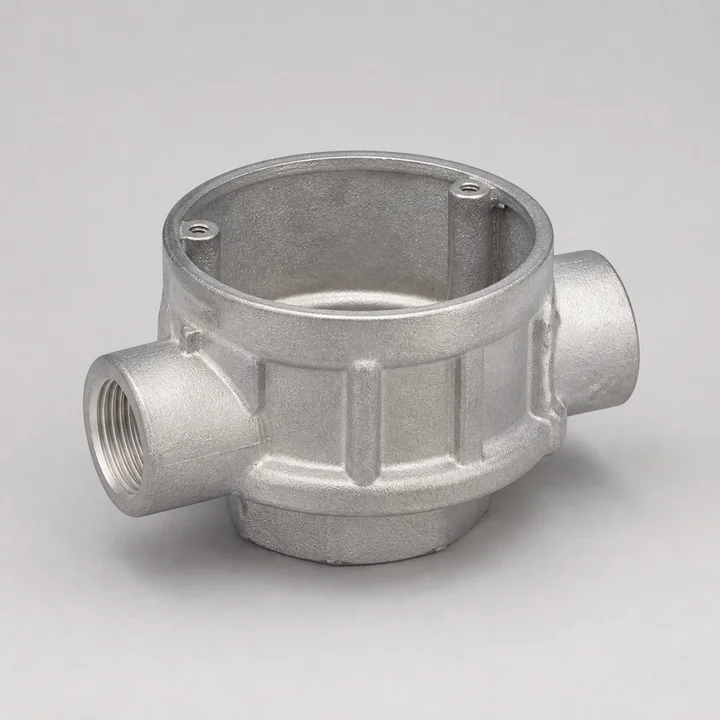

Electrical conduit hub produced in A360 aluminum for weatherproof electrical boxes. Supplied to print with lot traceability and inspection documentation.
PC-CA-012

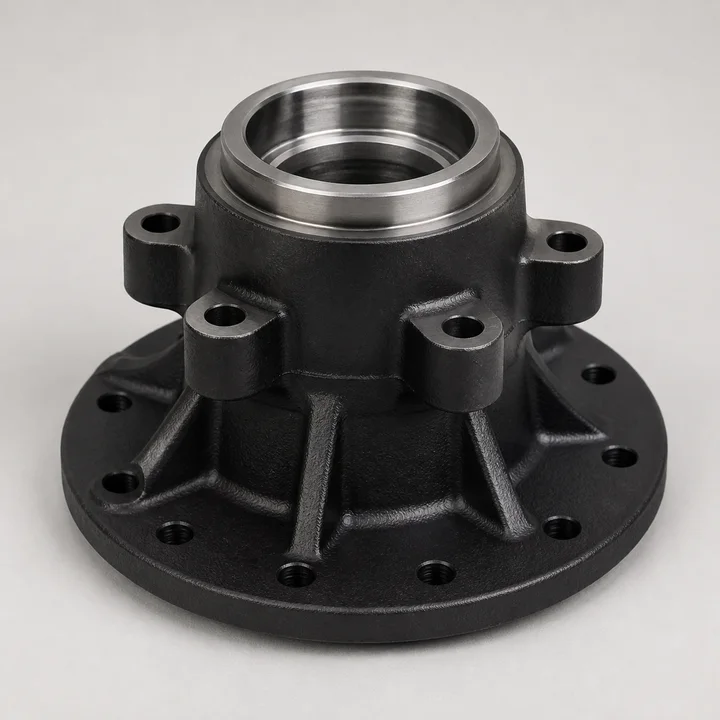

Forklift wheel hub produced in Ductile iron 65-45-12 for industrial material-handling vehicles. Supplied to print with lot traceability and inspection documentation.
PC-CA-013

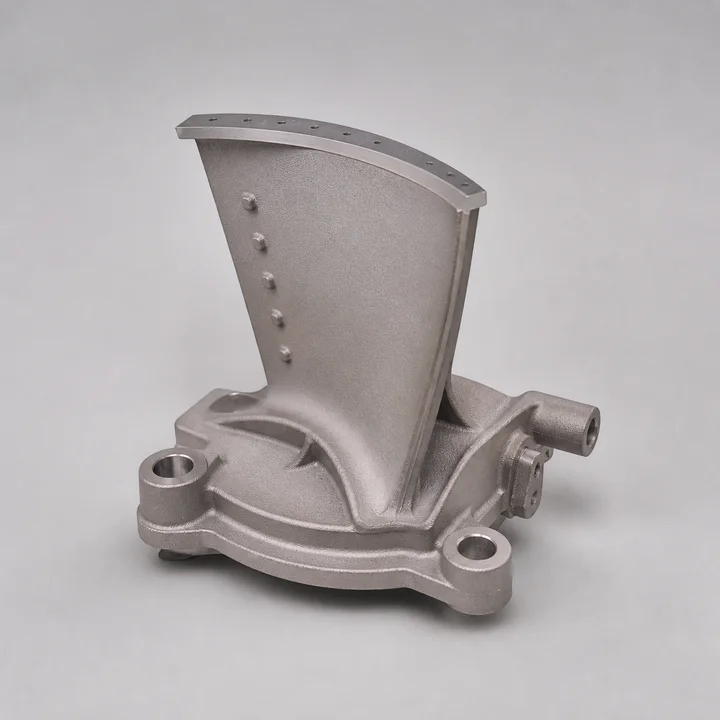

Turbine vane segment produced in 17-4 PH stainless for high-temperature flow equipment. Supplied to print with lot traceability and inspection documentation.
PC-CA-014

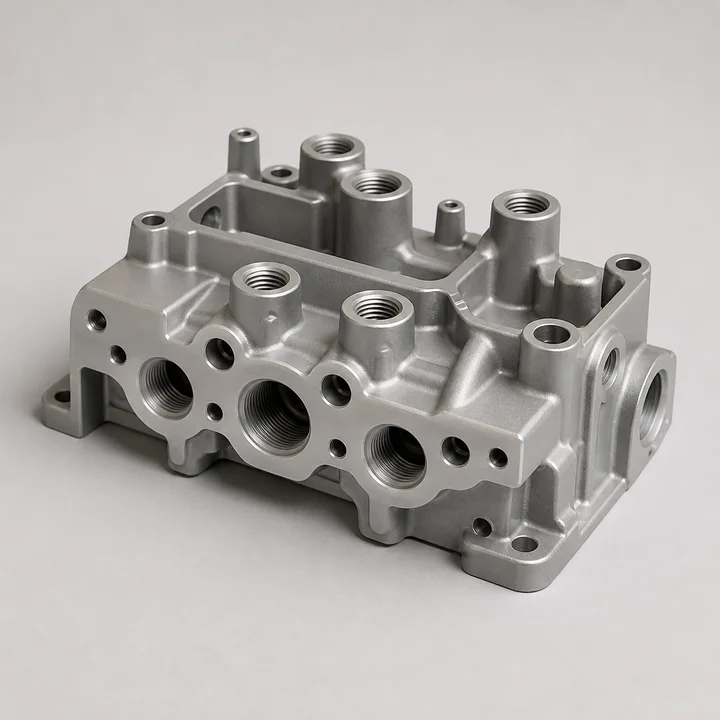

Pneumatic manifold casting produced in A356-T6 aluminum for factory automation valve banks. Supplied to print with lot traceability and inspection documentation.
PC-CA-015

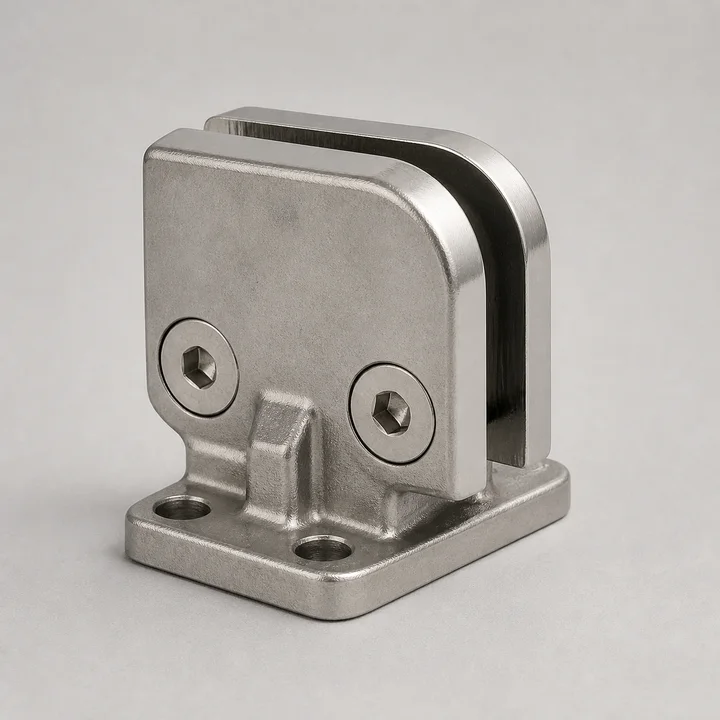

Architectural glass clamp produced in 316 stainless for frameless glazing systems. Supplied to print with lot traceability and inspection documentation.
PC-CA-016

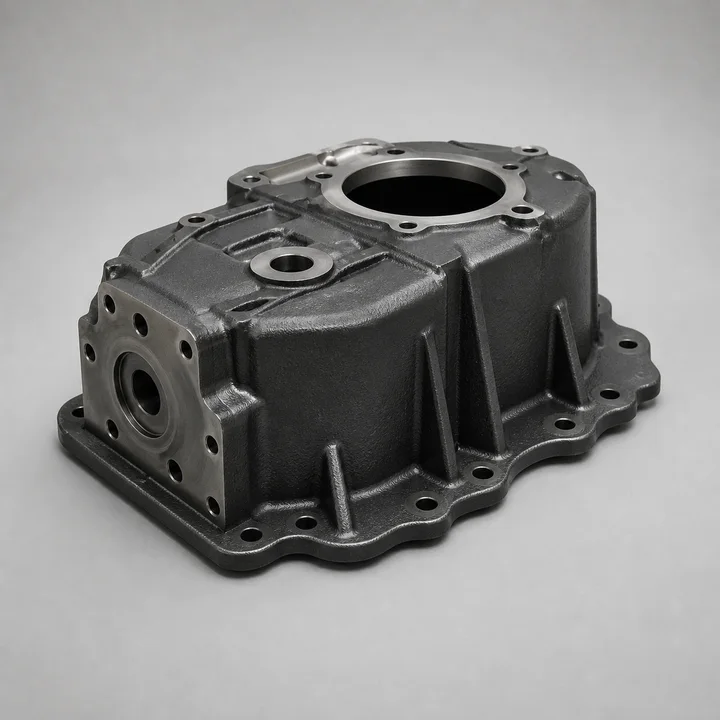

Agricultural gearbox cover produced in Gray iron class 30 for tractor implement drives. Supplied to print with lot traceability and inspection documentation.
PC-CA-017

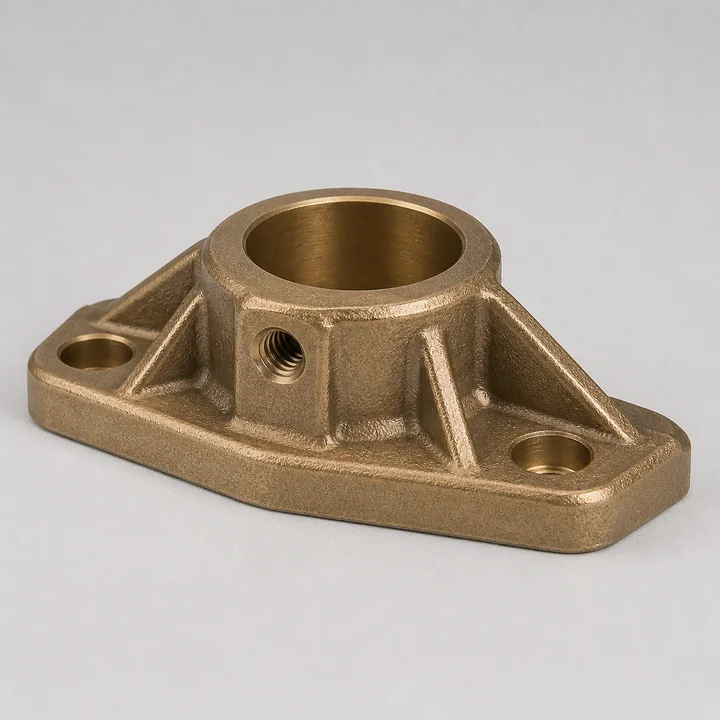

Marine cleat base produced in Silicon bronze C875 for commercial marine deck hardware. Supplied to print with lot traceability and inspection documentation.

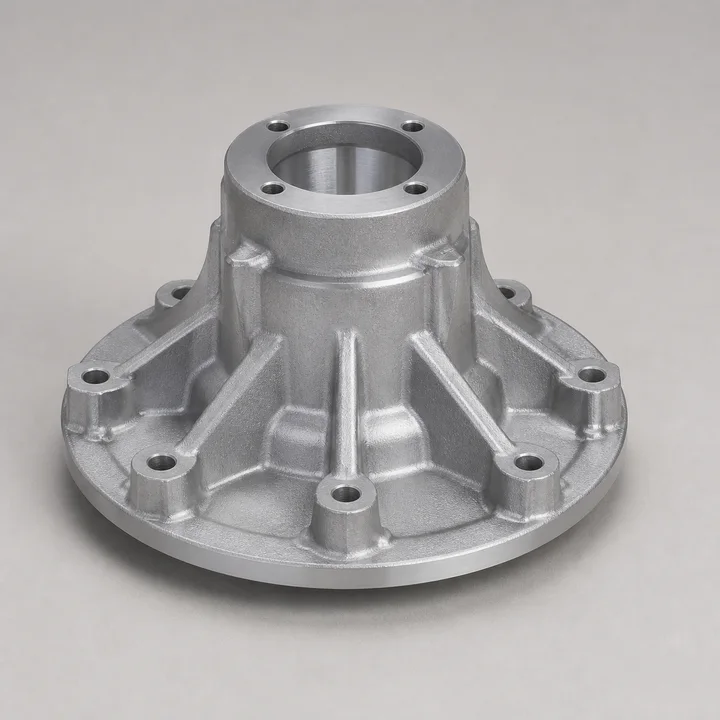

PC-CA-018
Fan blade hub produced in A356-T6 aluminum for industrial ventilation fans. Supplied to print with lot traceability and inspection documentation.
PC-CA-019

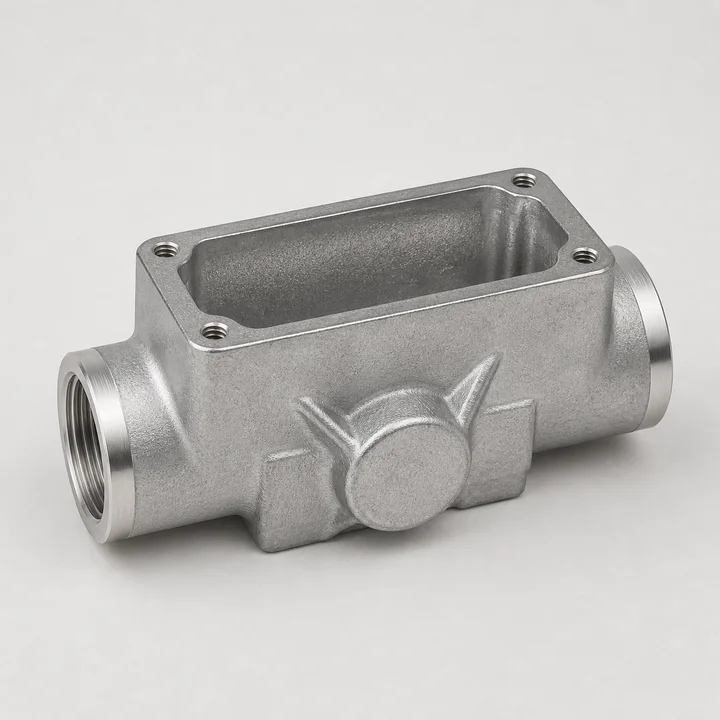

Cable gland body produced in ZA-12 zinc for industrial cable-entry systems. Supplied to print with lot traceability and inspection documentation.
PC-CA-020

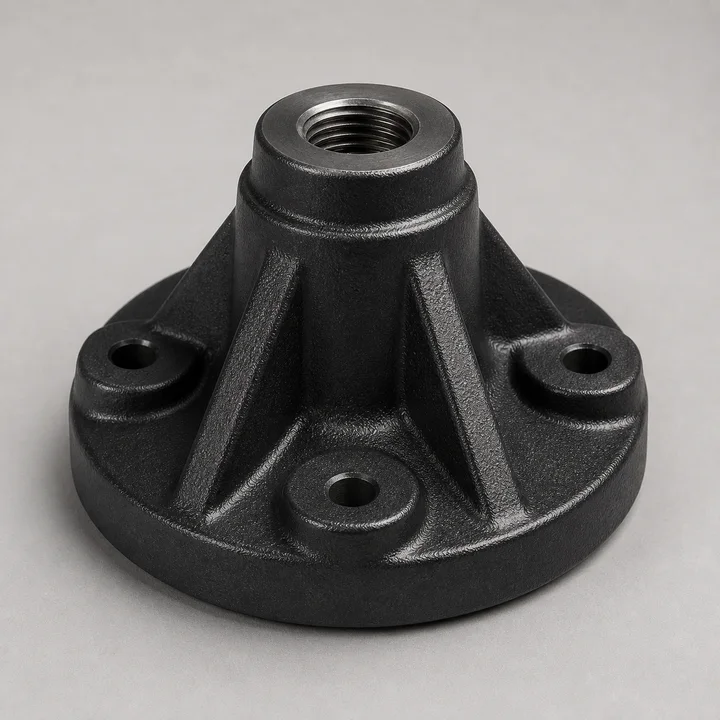

Machine leveling foot produced in Ductile iron 65-45-12 for heavy production equipment. Supplied to print with lot traceability and inspection documentation.
PC-CA-021

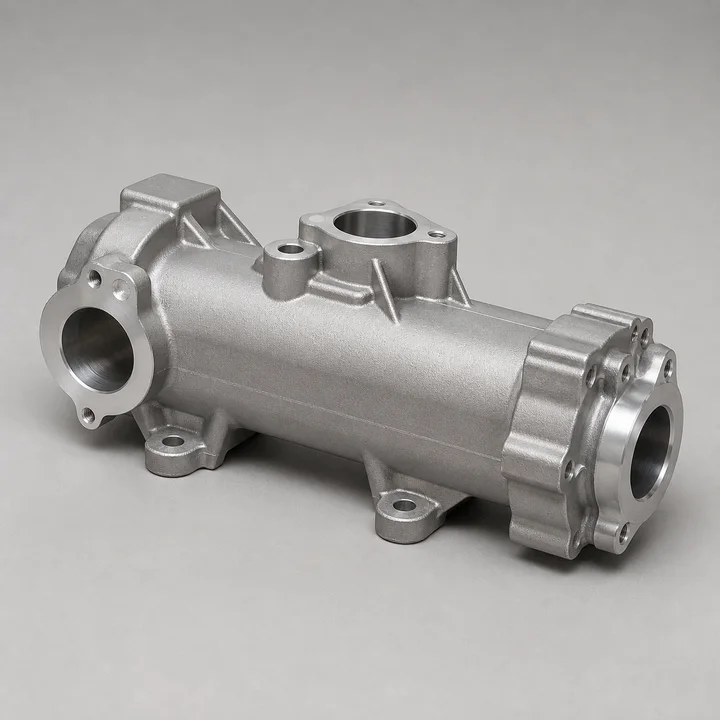

Heat exchanger end tank produced in A356-T6 aluminum for liquid cooling assemblies. Supplied to print with lot traceability and inspection documentation.

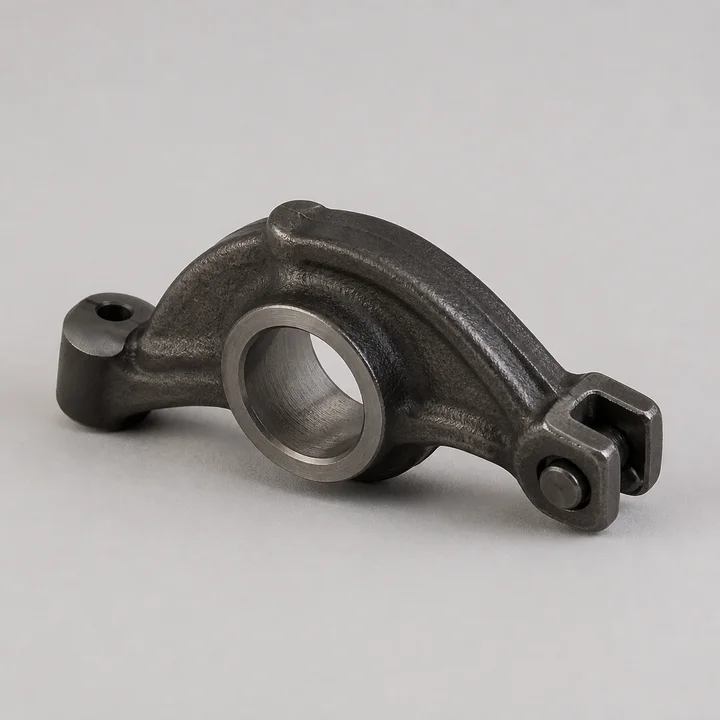

PC-CA-022
Investment-cast rocker arm produced in 8620 alloy steel for high-cycle actuation systems. Supplied to print with lot traceability and inspection documentation.
PC-CA-023

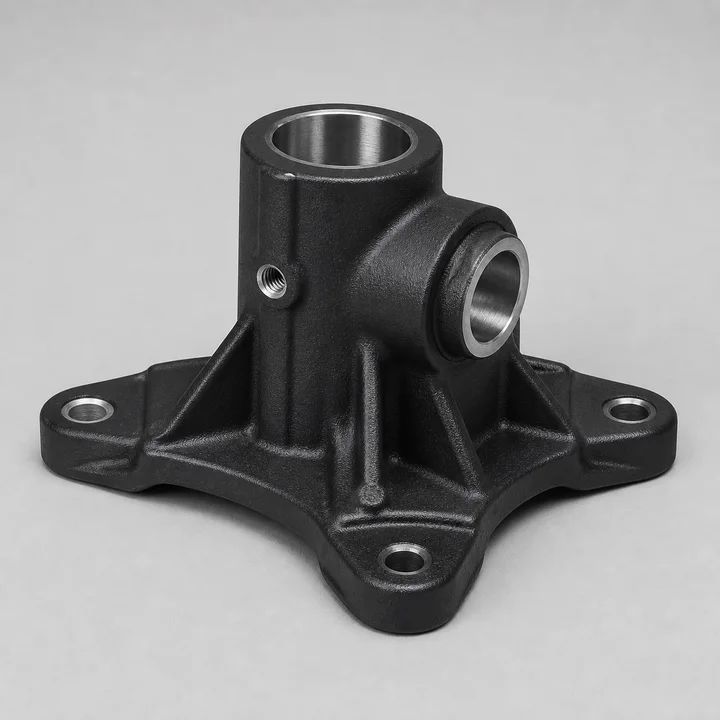

Camera support knuckle produced in A356-T6 aluminum for outdoor surveillance mounts. Supplied to print with lot traceability and inspection documentation.
PC-CA-024

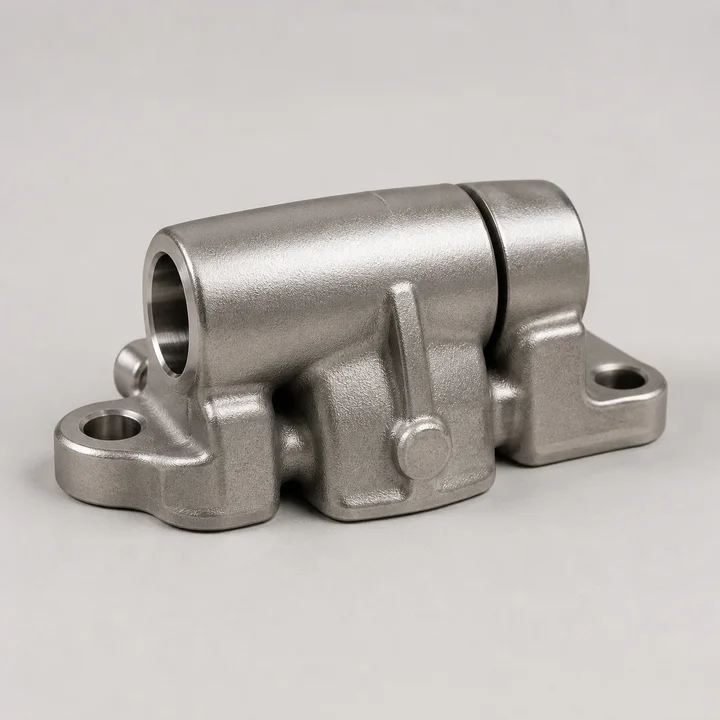

Food-equipment hinge body produced in 316 stainless for washdown processing machinery. Supplied to print with lot traceability and inspection documentation.
PC-CA-025

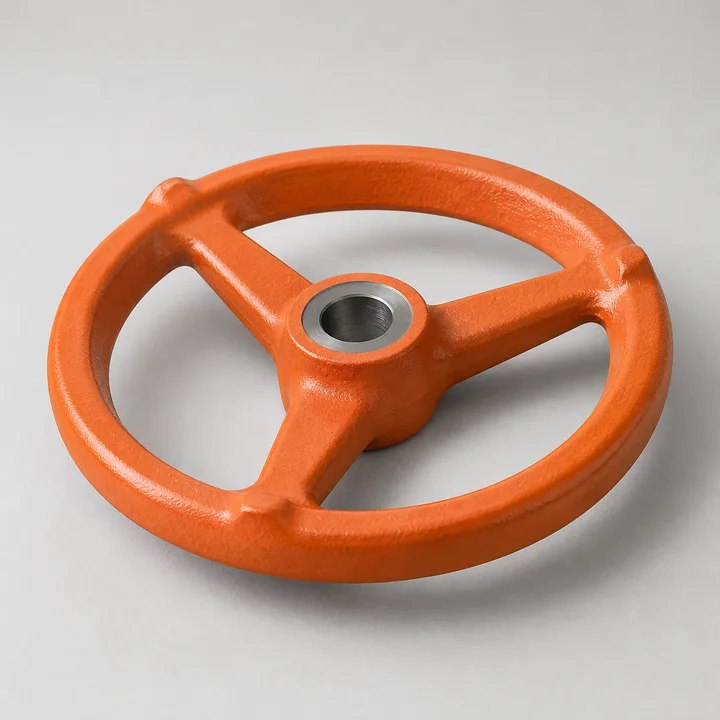

Industrial handwheel produced in Gray iron class 25 for manual valve and machine controls. Supplied to print with lot traceability and inspection documentation.
05 · 25 product families
Laser-cut, formed, and welded enclosures, chassis, panels, and guards. Hardware, powder coat, graphics, gasketing, and subassembly can be completed to the customer BOM.
PC-EN-001

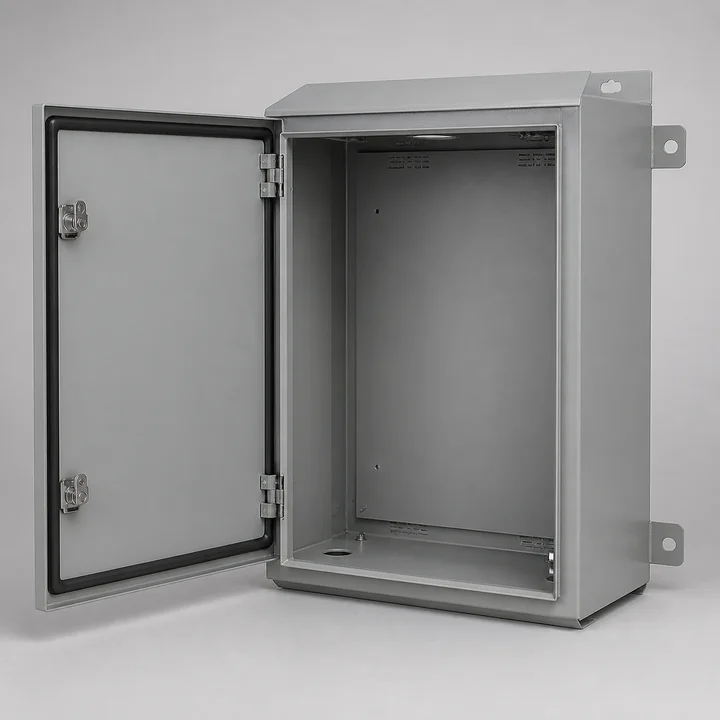

Wall-mount control enclosure produced in 16ga 5052-H32 aluminum for indoor automation controls. Supplied to print with lot traceability and inspection documentation.
PC-EN-002

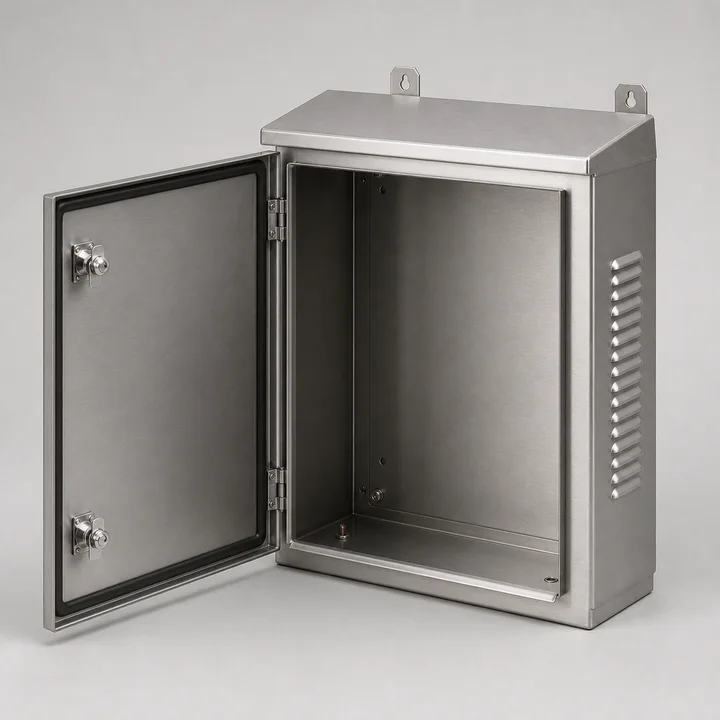

NEMA 4 electrical cabinet produced in 14ga 304 stainless for washdown industrial controls. Supplied to print with lot traceability and inspection documentation.

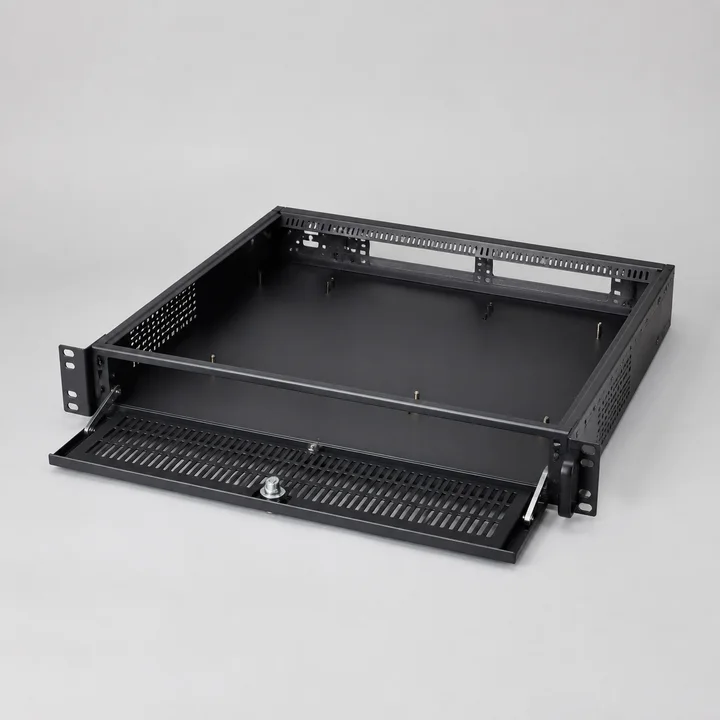

PC-EN-003
1U rackmount chassis produced in 1.5mm 5052-H32 aluminum for network and broadcast electronics. Supplied to print with lot traceability and inspection documentation.
PC-EN-004

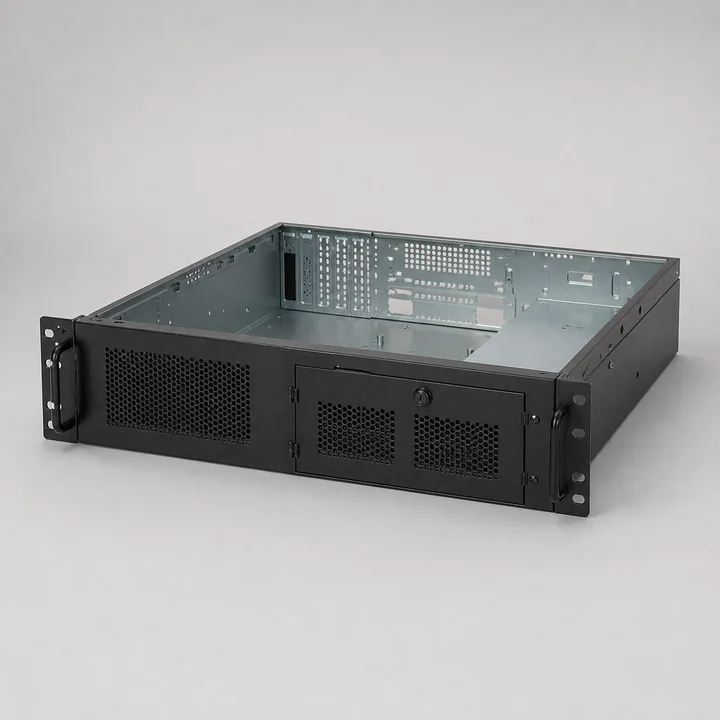

2U vented server chassis produced in 1.2mm galvanized steel for edge-computing appliances. Supplied to print with lot traceability and inspection documentation.

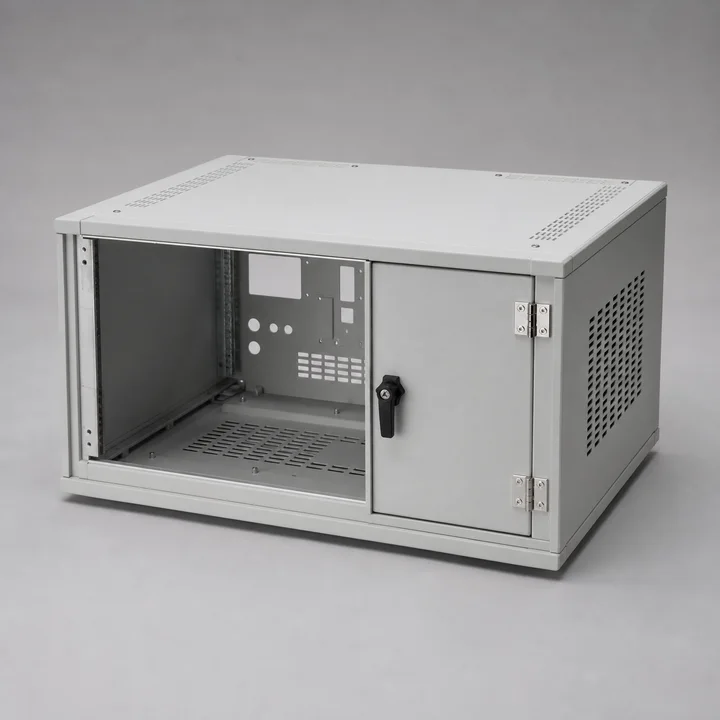

PC-EN-005
Desktop instrument housing produced in 1.5mm 5052-H32 aluminum for laboratory test equipment. Supplied to print with lot traceability and inspection documentation.

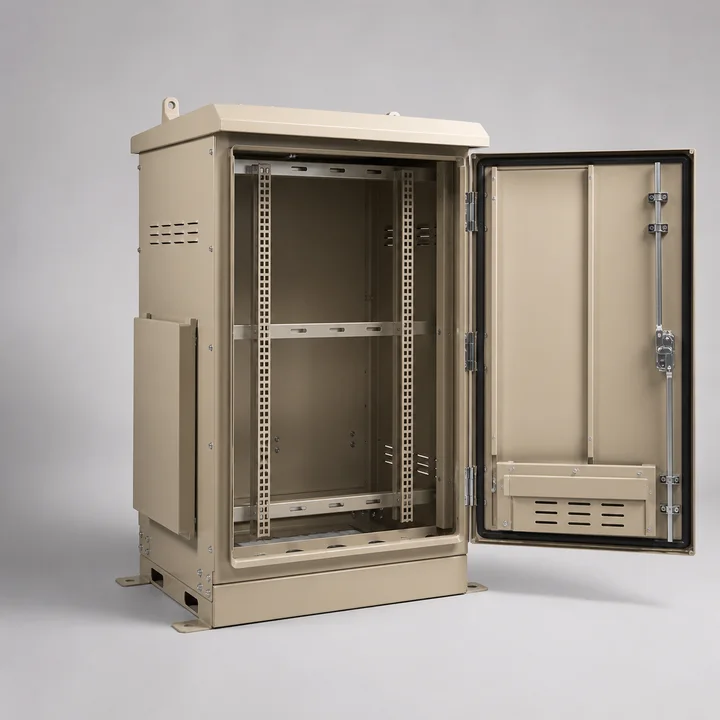

PC-EN-006
Outdoor telecom cabinet produced in 14ga 5052-H32 aluminum for roadside communications equipment. Supplied to print with lot traceability and inspection documentation.
PC-EN-007

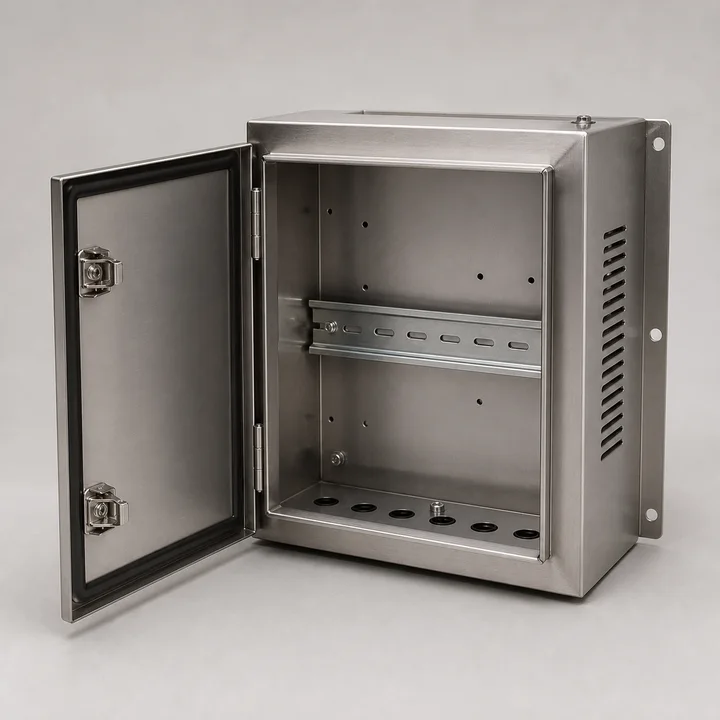

DIN rail junction box produced in 16ga 304 stainless for factory sensor distribution. Supplied to print with lot traceability and inspection documentation.
PC-EN-008

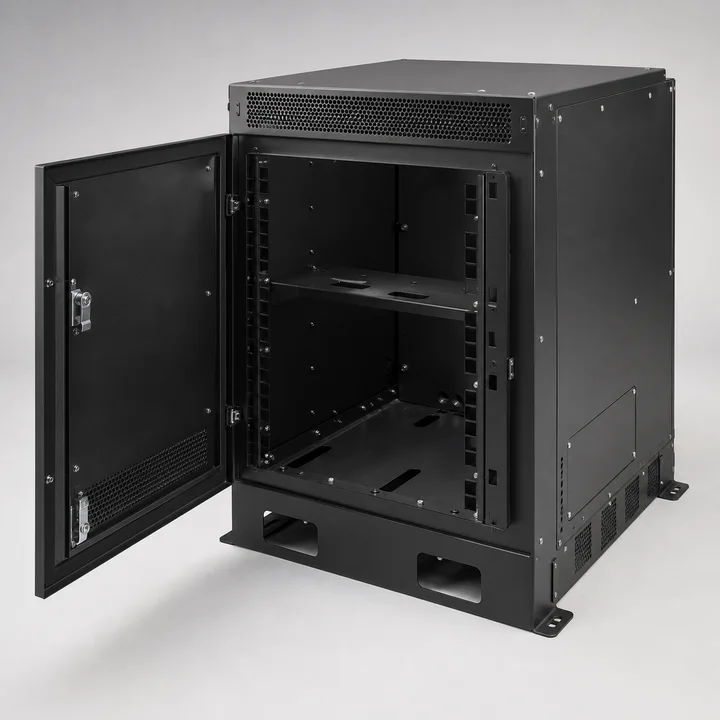

Battery pack enclosure produced in 1.5mm 5052-H32 aluminum for mobile energy-storage systems. Supplied to print with lot traceability and inspection documentation.
PC-EN-009

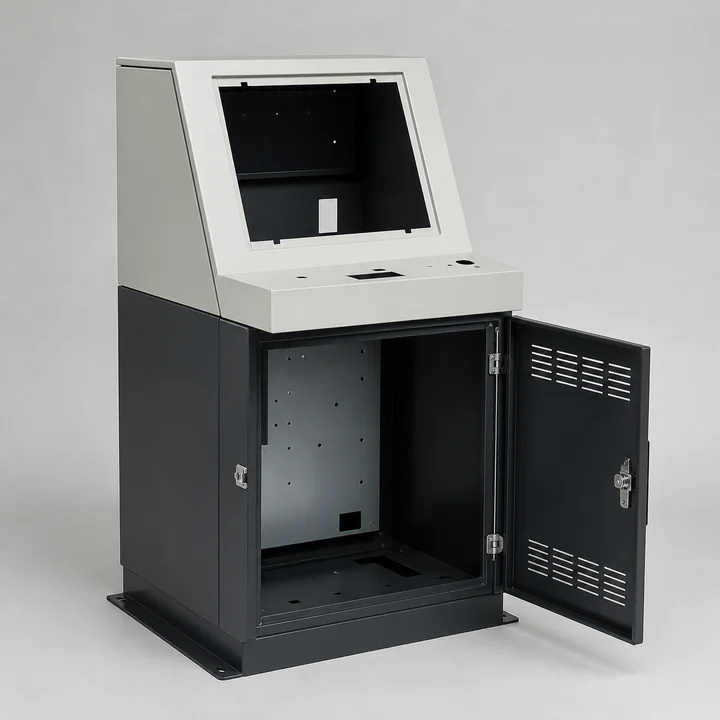

Operator console pedestal produced in 14ga CRS for industrial HMI stations. Supplied to print with lot traceability and inspection documentation.
PC-EN-010

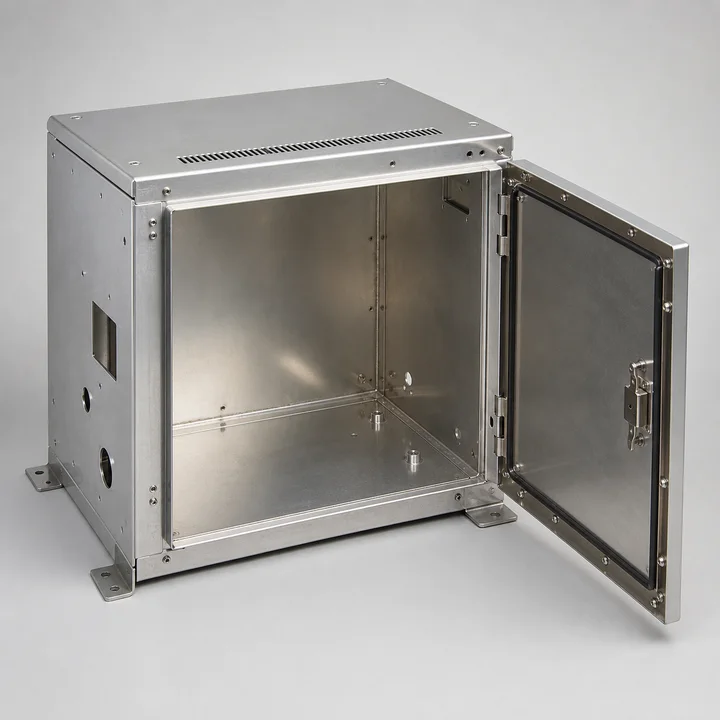

EMI-shielded electronics box produced in 1.0mm 5052-H32 aluminum for sensitive RF electronics. Supplied to print with lot traceability and inspection documentation.
PC-EN-011

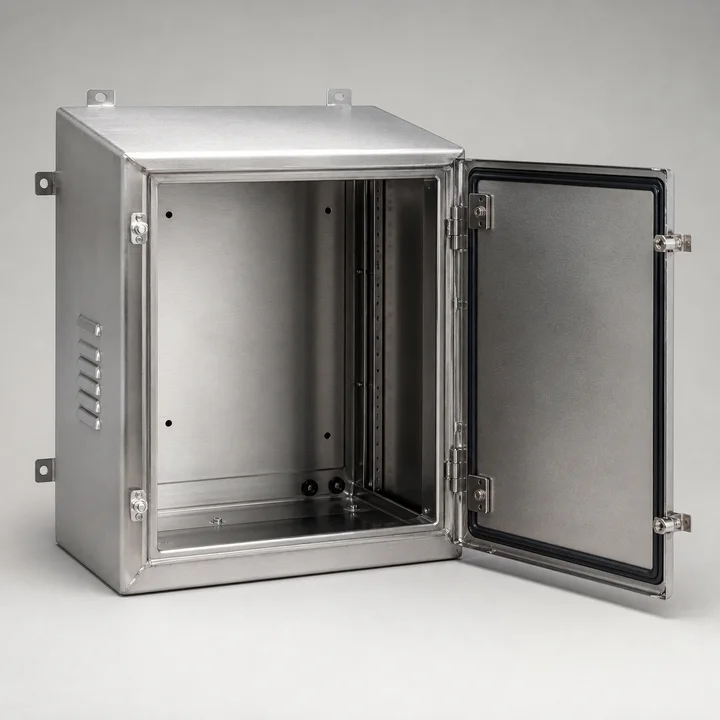

Sanitary washdown enclosure produced in 14ga 316L stainless for food and beverage controls. Supplied to print with lot traceability and inspection documentation.
PC-EN-012

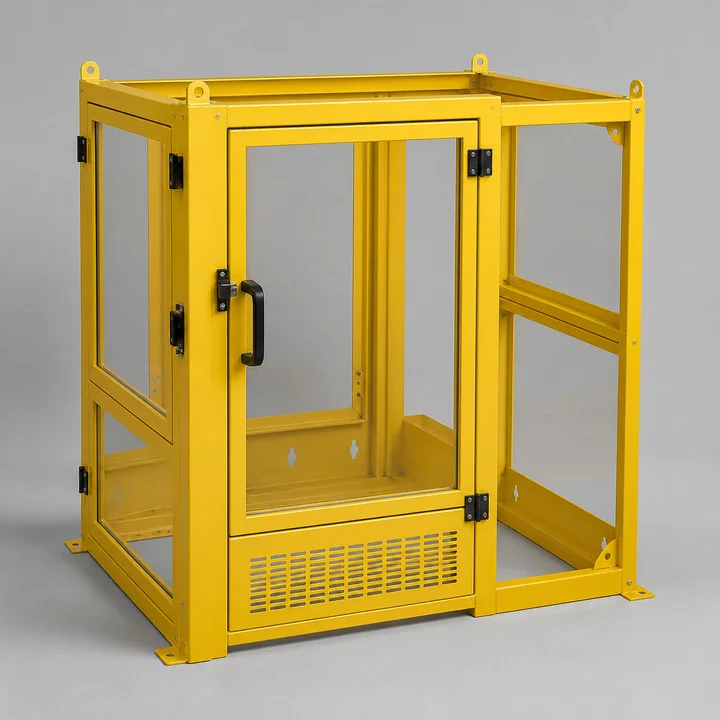

Machine safety guard panel produced in 14ga CRS with polycarbonate insert for automated production cells. Supplied to print with lot traceability and inspection documentation.
PC-EN-013

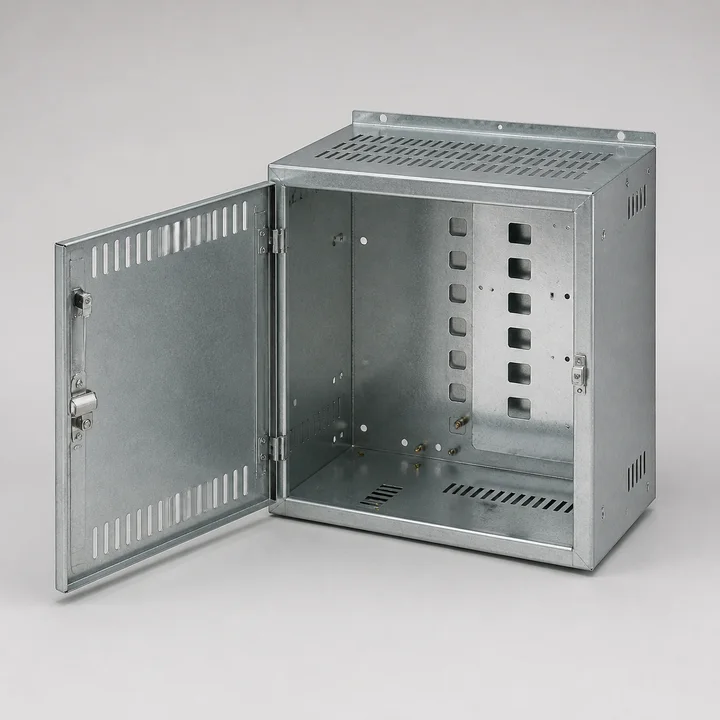

Power supply chassis produced in 1.2mm galvanized steel for industrial AC/DC power supplies. Supplied to print with lot traceability and inspection documentation.

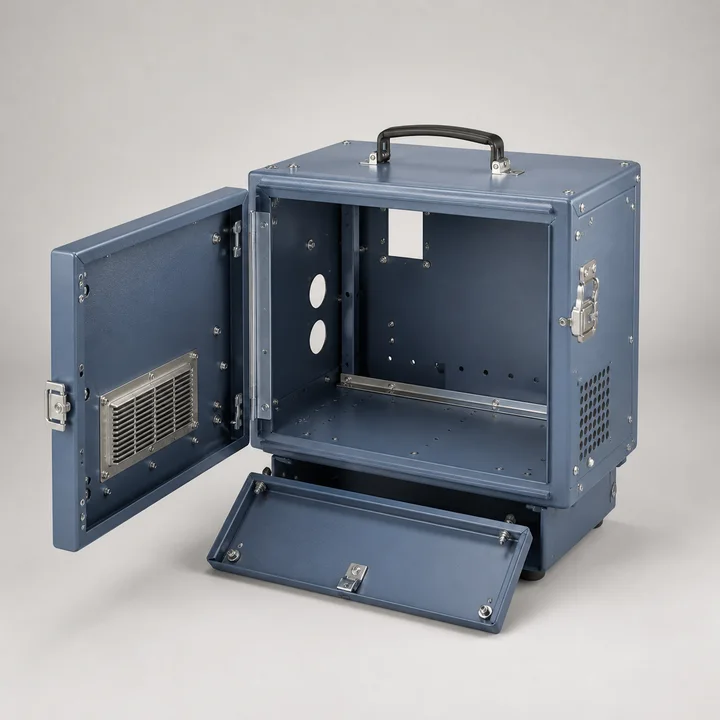

PC-EN-014
Portable analyzer case produced in 1.5mm 5052-H32 aluminum for field measurement instruments. Supplied to print with lot traceability and inspection documentation.
PC-EN-015

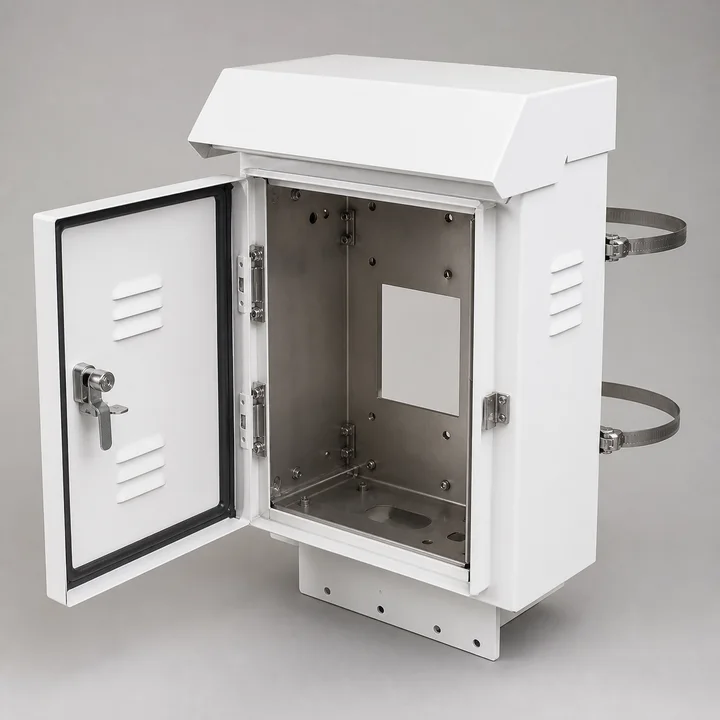

Pole-mount camera enclosure produced in 14ga 304 stainless for outdoor imaging systems. Supplied to print with lot traceability and inspection documentation.
PC-EN-016

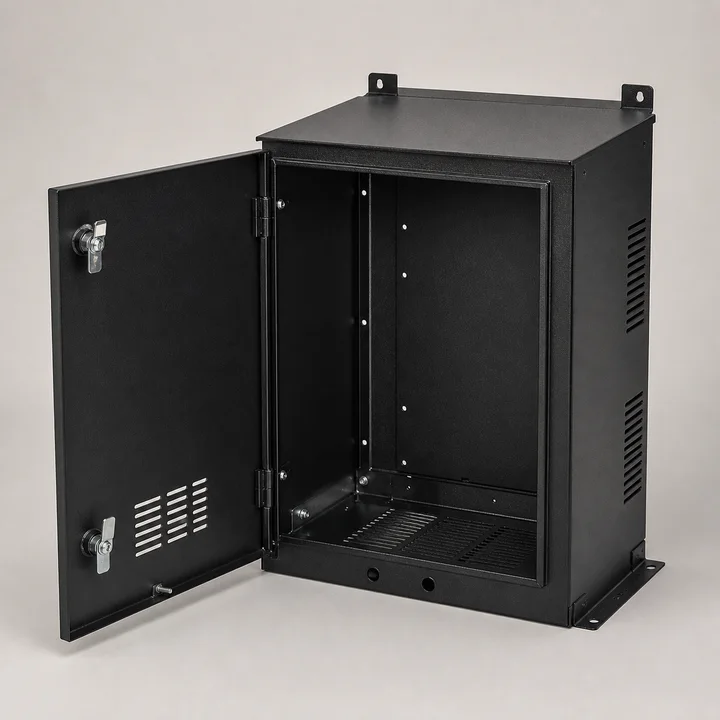

Motor drive housing produced in 16ga CRS for variable-frequency drives. Supplied to print with lot traceability and inspection documentation.
PC-EN-017

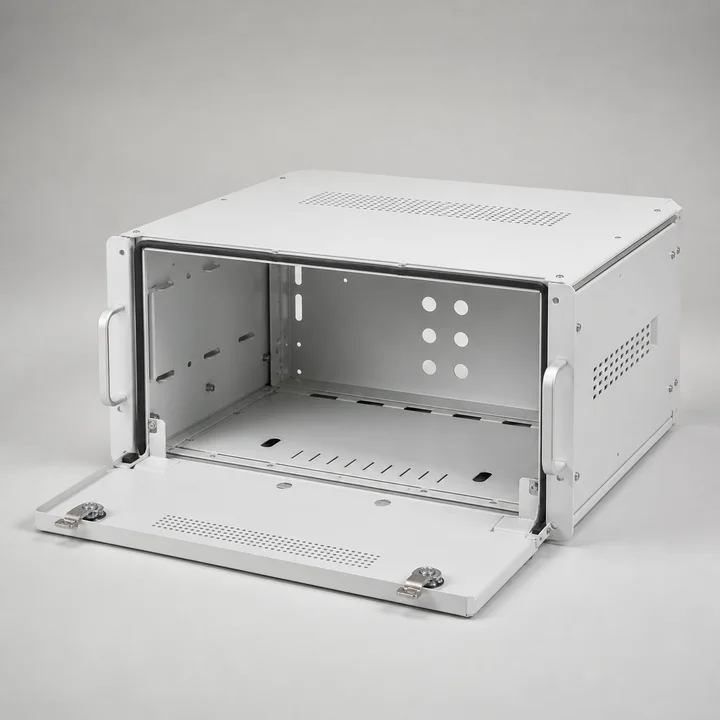

Medical cart electronics drawer produced in 1.2mm 5052-H32 aluminum for mobile clinical equipment. Supplied to print with lot traceability and inspection documentation.
PC-EN-018

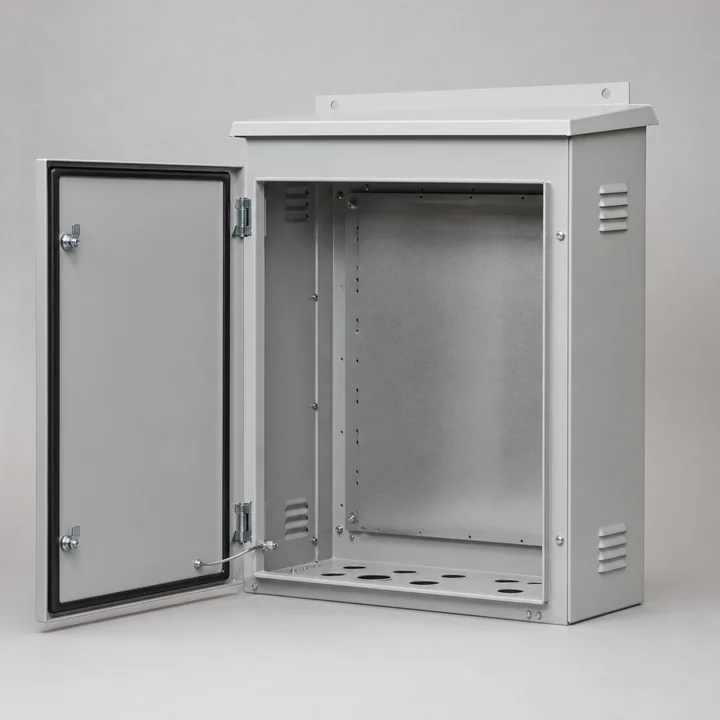

Solar combiner box produced in 14ga 5052-H32 aluminum for commercial photovoltaic arrays. Supplied to print with lot traceability and inspection documentation.
PC-EN-019

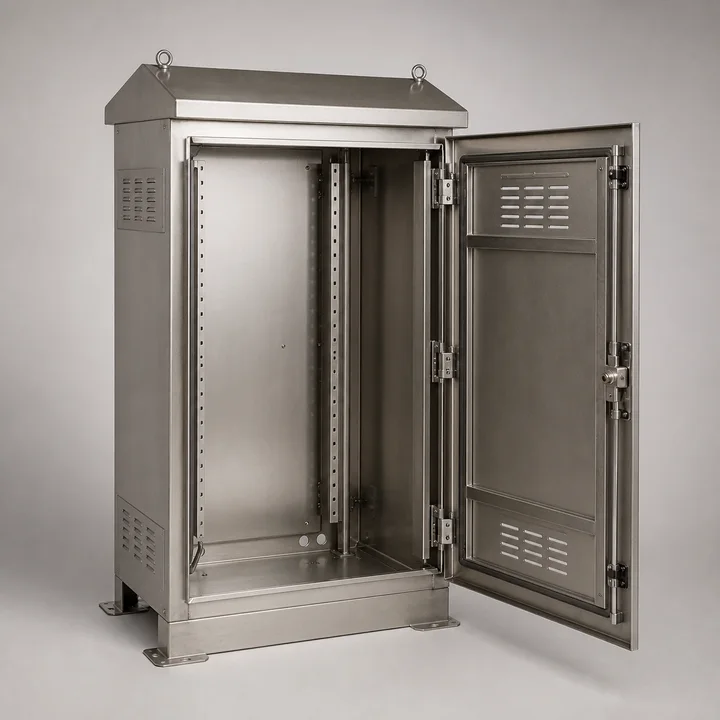

Railway signal cabinet produced in 12ga 304 stainless for trackside signaling equipment. Supplied to print with lot traceability and inspection documentation.
PC-EN-020

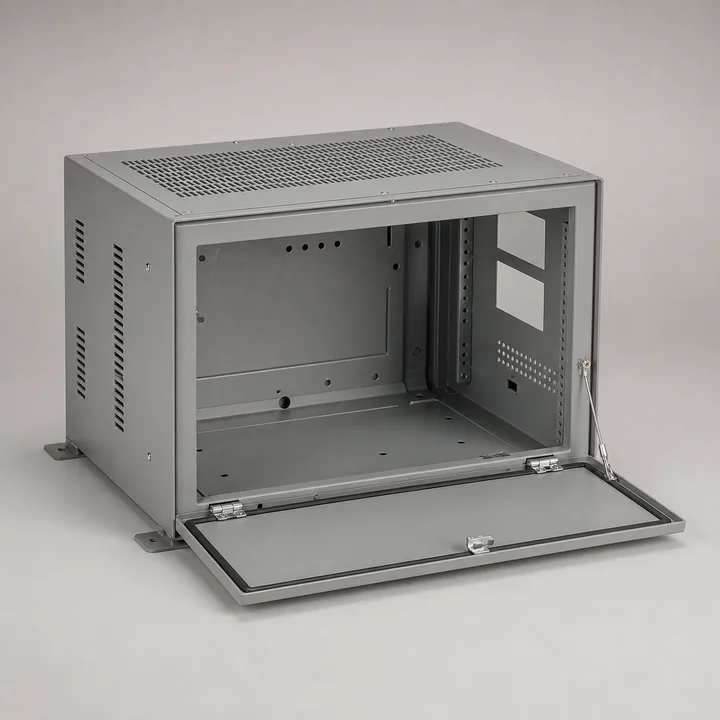

Benchtop controller enclosure produced in 1.5mm 5052-H32 aluminum for precision motion controllers. Supplied to print with lot traceability and inspection documentation.
PC-EN-021

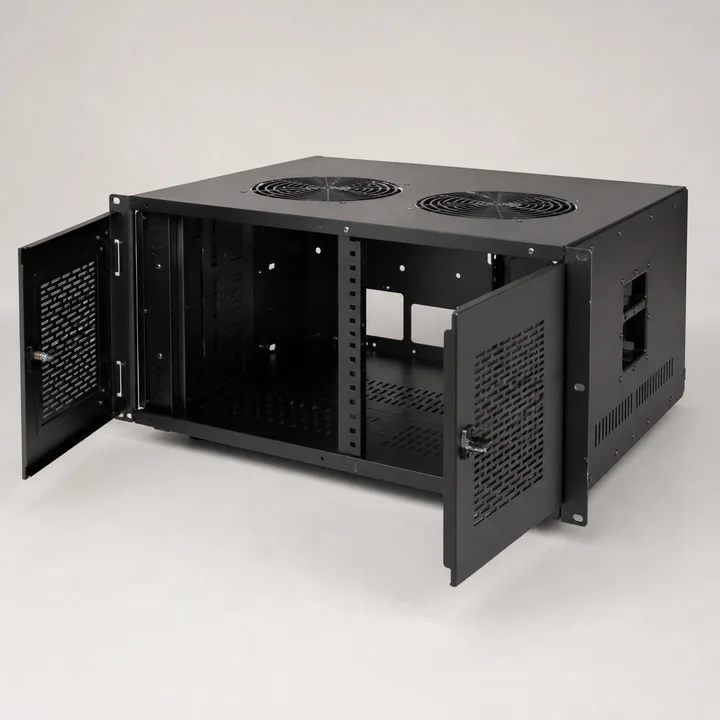

Fan-cooled amplifier chassis produced in 1.5mm 5052-H32 aluminum for professional audio amplifiers. Supplied to print with lot traceability and inspection documentation.
PC-EN-022

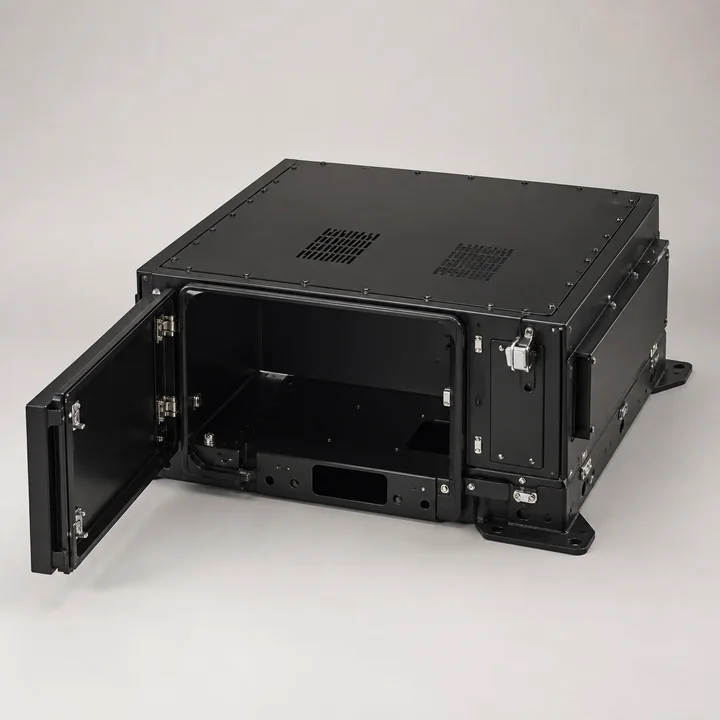

Underbody electronics enclosure produced in 2.0mm 5052-H32 aluminum for commercial electric vehicles. Supplied to print with lot traceability and inspection documentation.
PC-EN-023

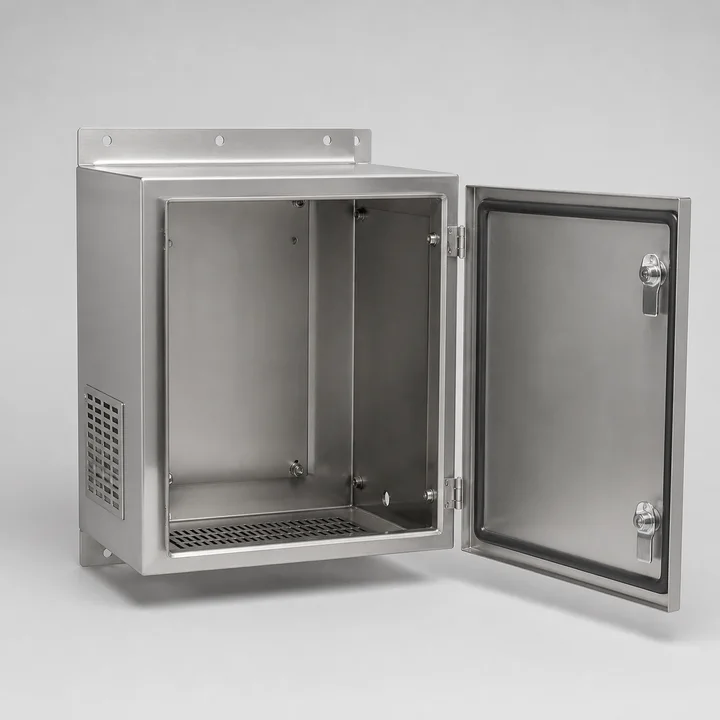

Cleanroom terminal box produced in 16ga 304 stainless for pharmaceutical cleanrooms. Supplied to print with lot traceability and inspection documentation.
PC-EN-024

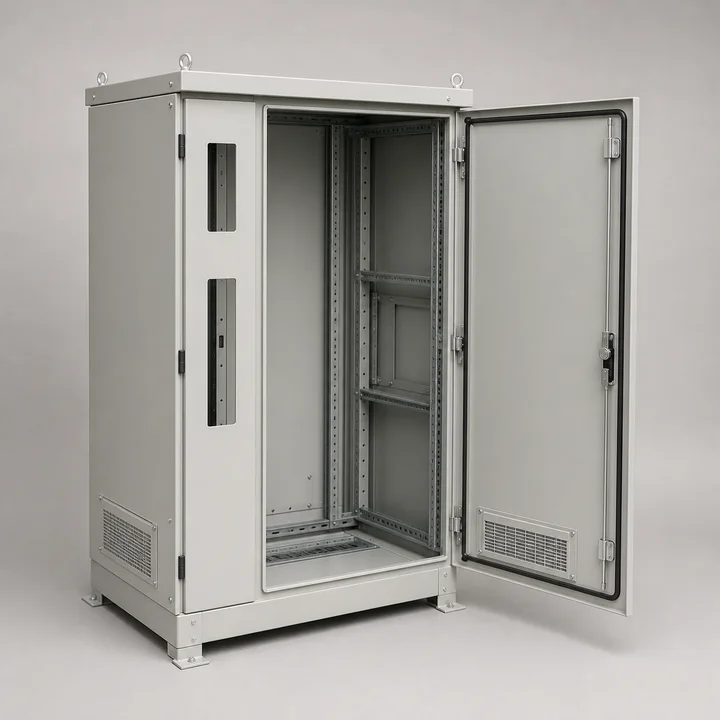

Modular PLC cabinet produced in 14ga CRS for plant-floor automation systems. Supplied to print with lot traceability and inspection documentation.
PC-EN-025

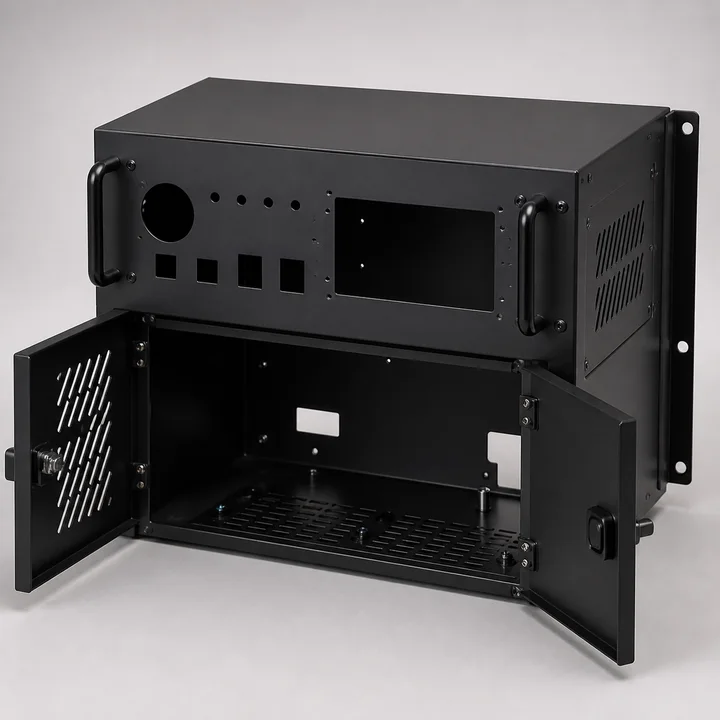

Custom front panel assembly produced in 3.0mm 6061-T6 aluminum for specialized control instruments. Supplied to print with lot traceability and inspection documentation.
Send a drawing or sample and we'll scope the right process, material, and production plan for your volume.
